Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V

    Buy cheap Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V from wholesalers

    Buy cheap Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V from wholesalers
    • Buy cheap Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V from wholesalers
    • Buy cheap Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V from wholesalers
    • Buy cheap Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V from wholesalers
    • Buy cheap Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V from wholesalers

    Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 2440-9237KT 401107-00293 401107-00293A
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 1000 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

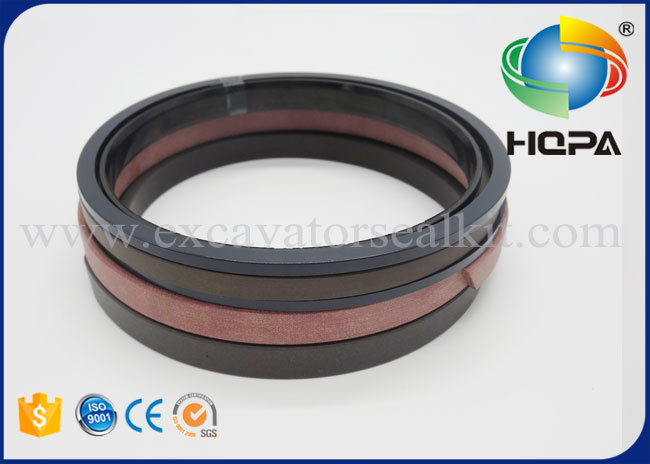

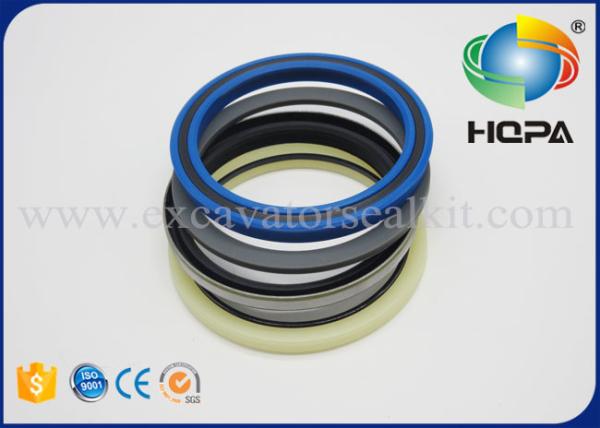

    Doosan 2440-9237KT Excavator Seal Kit , Bucket Seal Kit For DH 220LC-V

    Doosan 2440-9237KT Excavator Arm Seal Kit Bucket Seal Kit For DH 220LC-V SOLAR 200W-V SOLAR 220LC-V


    Product NameDoosan 2440-9237KT Excavator Arm Seal Kit Bucket Seal Kit For DH 220LC-V
    Part No.2440-9237KT 401107-00293 401107-00293A
    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent,and so on
    Hardness70-90 Shore A
    ColorBlack,Brown,Blue, White or other
    SizeStandard Size
    MOQ

    We accept trial order

    PackingPP bag inside, carton box outside
    Delivery Time3-5 days after payment received(public holiday excluded)
    Payment

    Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.

    PortHUAGNPU,China (Mainland)
    ShippingBy airplane, ship
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed
    ApplicationExcavator&Hydraulic Systerm
    Condition100% New


    RELATION PARTS:

    NO.PART NUMBERNAMEQTY
    12440-9237Bucket Cylinder1
    253U323-1Cylinder Barrel Assembly1
    303B735-1Steel Bushing1
    453U329-1Rod Assembly1
    500R727-0Seal Ring2
    6E8412171Bushing1
    700M323-0Jump Ring1
    8E5500240Shock Ring1
    9E5302940U-packing1
    10E6020240Dust Scraping Ring1
    1100M320-0Jump Ring1
    12E6300581O-ring1
    1353U237-0Back-up Ring2
    1453U332-0Piston1
    1553A397-0Buffer Ring1
    16E5130250Sliding Seal1
    1700W248-0Wear Ring2
    18E3110102Elastic Washer1
     2440-9237KTBucket Cylinder Seal Kit1


    Hydraulic Seal installation requirements:


    1. the hydraulic sealing gaskets and flange sealing surface should be clean


    2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter


    3. Sealing gasket pre-tightening force should not exceed the design rules


    4. sealing asbestos gasket compression, it is best to use the torque wrench


    5. Installing a sealing gasket, should be in order, in turn, tighten the nut


    6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket


    Welcom to contact us,we can provide the high quality and best price!
