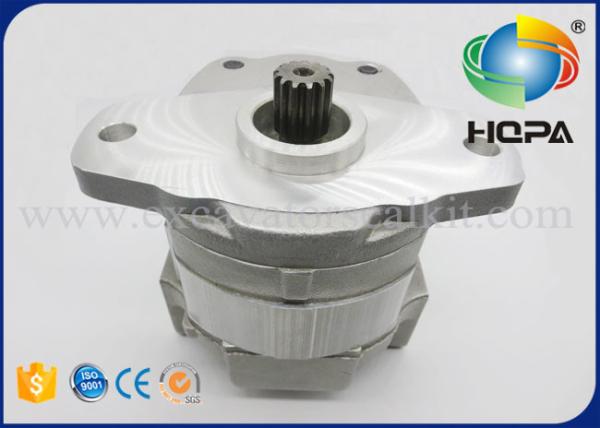

Gear Pump 705-24-29090 7052230150 Hydraulic For Komatsu PC75UU-3 PC78US-5 PC75UD-3
| Product Name | Gear Pump 705-24-29090 7052230150 Hydraulic For Komatsu PC75UU-3
PC78US-5 PC75UD-3 |
|
| Part No. | 705-24-29090 7052230150 |
|
| Material | Casting Iron |
|
| Feature | It forms a tight seal for the combustion chamber |
|
| Category Group | Excavator Hydraulic Parts |
|
| Color | Silver |
|
| Size | Standard |
|
| MOQ | 1PC |
|
| Packing | Inner-Plastic Bag; Outer -Standard Carton Box. |
|
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
|
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
|
| Port | HUAGNPU,China (Mainland) |
|
| Shipping | By airplane, ship |
|
| Express | Fedex,TNT,UPS,DHL |
|
| Customized | OEM & ODM are welcomed |
|
| Application | Komatsu PC75UU-3 PC78US-5 PC75UD-3 PC75US-3 PC95R-2 PC110R-1
PW95R-2 PW110R-1 |
|
| Condition | 100%New |
Related Product:
| NO. | PART NUMBER | NAME | Q1 |
| 1 | 705-18-02980 | •• BRACKET ASS'Y | 1 |
| 2 | 705-17-02353 | ••• BUSHING,PLANE | 2 |
| 3 | 705-17-02122 | •• COVER ASS'Y | 1 |
| 4 | 705-17-02353 | ••• BUSHING,PLANE | 2 |
| 5 | 705-17-02612 | •• PLATE,SIDE | 2 |
| 6 | 705-17-02440 | •• RING,BACK-UP | 2 |
| 7 | 705-17-02472 | •• RING,SEAL | 2 |
| 8 | 705-17-02381 | •• O-RING | 2 |
| 9 | 705-18-29920 | •• CASE | 1 |
| 10 | 705-17-30012 | •• CASE | 1 |
| 11 | 705-18-29980 | •• GEAR,DRIVE | 1 |
| 12 | 705-17-30740 | •• GEAR,DRIVE | 1 |
| 13 | 705-18-29910 | •• GEAR,DRIVEN | 1 |
| 14 | 705-17-30512 | •• GEAR,DRIVEN | 1 |
| 15 | 04020-01024 | •• PIN | 4 |
| 16 | 705-17-02730 | •• BOLT | 4 |
| 17 | 705-17-02750 | •• BOLT | 4 |
| 18 | 01643-51232 | •• WASHER | 4 |
| | 705-24-29090 | • GEAR PUMP ASS'Y | 1 |
| | 705-22-30150 | • GEAR PUMP ASS'Y | 1 |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should
be clean
2. hydraulic sealing gasket diameter should be smaller than flange
seal face outside and inside diameter should be slightly bigger
than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design
rules
4. sealing asbestos gasket compression, it is best to use the
torque wrench
5. Installing a sealing gasket, should be in order, in turn,
tighten the nut
6. if there is any leakage, must be installed after
antihypertensive treatment to replace or adjust the sealing gasket
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC.
It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods .
Q3: If we don’t find what we want on your website, what should we
do?
A: You can email us the descriptions and pictures of the products
you need, we will check whether we
have them. We develop new items every month, and some of them have
not been uploaded to website in
time. Or you can send us sample by express, we will develop this
item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the
item you need in stock
Welcom to contact us,we can provide the high quality and best
price!
