SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1

    Buy cheap SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1 from wholesalers

    Buy cheap SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1 from wholesalers
    • Buy cheap SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1 from wholesalers
    • Buy cheap SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1 from wholesalers
    • Buy cheap SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1 from wholesalers
    • Buy cheap SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1 from wholesalers

    SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 24100J6668F1
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 1000 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    SK200 Center Joint Seal Kit For Joint ASSY , Swivel KOBELCO Excavator 24100J6668F1

    SK200 Center Joint Seal Kit For Joint ASSY,Swivel KOBELCO Excavator 24100J6668F1


    Product NameSK200 Center Joint Seal Kit For Joint ASSY,Swivel KOBELCO Excavator 24100J6668F1
    Part No.24100J6668F1
    MaterialPU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
    FeatureResistance to high pressure, oil, weather, abrasion, solvent,and so on
    Hardness70-90 Shore A
    ColorBlack,Brown,Yellow,white or other
    SizeStandard Size
    MOQWe accept trial order
    PackingPP bag inside, carton box outside
    Delivery Time3-5 days after payment received(public holiday excluded)
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    PortHUAGNPU,China (Mainland)
    ShippingBy airplane, ship
    ExpressFedex,TNT,UPS,DHL
    CustomizedOEM & ODM are welcomed
    ApplicationExcavator&Hydraulic Systerm
    Condition100% New

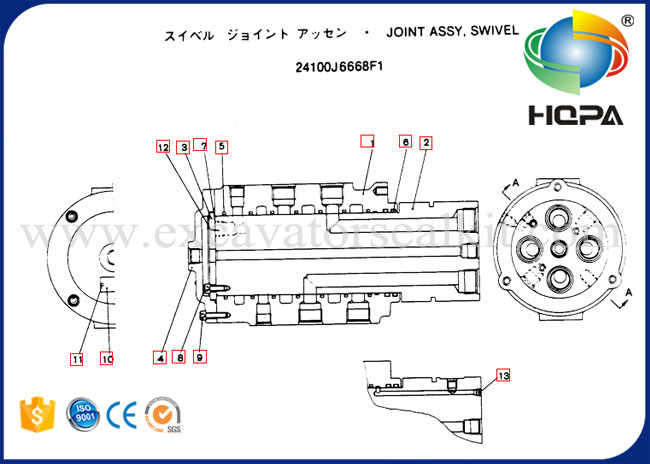

    Related Parts:
    NO.PART NUMBERNAMEQTY
    12436J188BODY1
    22436J189STEM1
    32414T2712PLATE, THRUST1
    42414P6082COVER1
    52445Z917SEAL ASSY7
    6ZD11P11000O-Ring -- ID 109.6 ± 0.91 x OD 120mm2
    7ZD11G12500O-Ring -- ID 124.4 ± 1.01 x OD 130mm1
    8ZS23C08020M08x1.25x20mm2
    9ZS23C08030M08x1.25x30mm4
    102432T2293NAME PLATE1
    112420Z1036D32.2x4.6mm2
    12ZE82T080001/2" PT2
    13ZE82T02000Pipe, 1.25" PT1
    24100J6668F1JOINT ASSY, SWIVEL1


    Hydraulic Seal installation requirements:


    1. the hydraulic sealing gaskets and flange sealing surface should be clean


    2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter


    3. Sealing gasket pre-tightening force should not exceed the design rules


    4. sealing asbestos gasket compression, it is best to use the torque wrench


    5. Installing a sealing gasket, should be in order, in turn, tighten the nut


    6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket


    FAQ:

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF.

    Q4. How about your delivery time?
    A: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Welcom to contact us,we can provide the high quality and best price!
