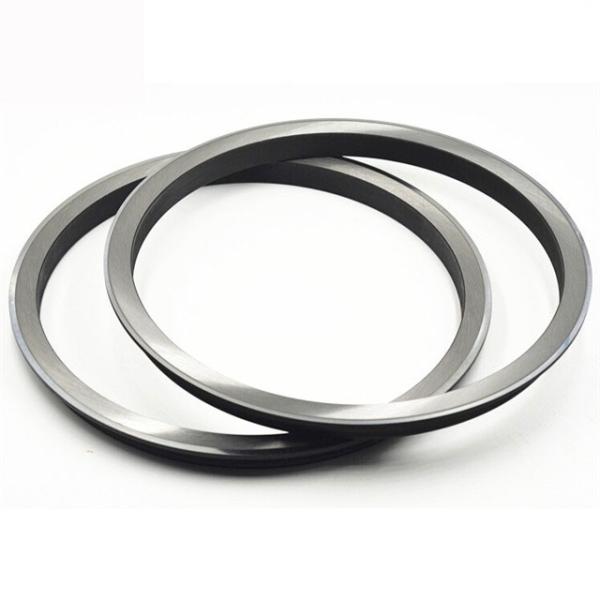

- CAT Duo Cone Seal is also called floating seal, seal group, Duo
cone seal, mechanical face seal, lifetime seal
- the outer diameter of floating seal is from 35mm-1,000mm.
- The hardness is HRC58-62 , the working face precision within
0.015um.
- Flatness up to 0.1um-0.2um ,the lifetime is more than 4,000HRS.
seal group Set are consist of metal rings and rubber o ring
- The metal rings
| Surface finish / Roughness | ≤ Ra0.2μm |
| Face finish | ≤ Ra0.015μm |
| Pressure | ≤ 0.3MPa |
| Forged/Casting line speed | 2m / s & 3m / s |
| Hardness | 58 - 62 HRC |
| Temperature | -100 ~ 200 °C |
- The rubber o ring
| Shore hardness | 60 ° ~ 65 ° |
| Minimum tensile strength | 11MPa |
| Minimum elongation at break | 300% |
| Flexible change | ± 5 ° |
| permanent deformation | ≤ 12% |
OEM
| Model | OEM Codes |
| Komatsu | 195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017,
207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002,
170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010,
425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010,
130-27-B0100, 180-27-00021, 175-27-00121, 140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010... |
| Kobelco | R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25, R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15,
R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023,
R45P0018D22, R45P0018D28... |
| CAT | 1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223,
9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P
3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078,
9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201... |
| Hitachi | 4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110, 4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250,
4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64... |
CAT Duo Cone Seal Details
CAT Duo Cone Seal Application:
-- Farm, construction, earthmoving, coal mining machinery
-- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck,
backhoe
-- Undercarraige, hydraulic motor, travel motor, gearbox axle,
wheel hub,tunneling
-- For OEM Komatsu, CAT, Shantui, Sany, Kubota, Kobelco, JCB,
Volvo, Hitachi,
John Deere, Fiat Allis, New Holland, Commins, Terex, BOB-Cat...
etc.
1. Are you a real manufacturer for floating seals ?
we are a real manufacturer for floating seals only. We also
designfloating seals, draw floating seals, assemble and manufacture
seals. Weaccept customer's design, drawing, and samples.
2. As an inland company, how to arrange shipment ?
This could be our advantage, as we are located in middle of China,
ittakes us same times to send goods either to Wuhan, Shanghai,
Ningbo,Shenzhen, or Xiamen port. We can deliver to most of ports
for seashipments, and arrange express DHL UPS Fedex TNT EMS Freely
to Doorservice.
3. Usually how long it take to finish an order ?
3 - 4 weeks for a common order around 1000 sets, and we keep
regularstocks for sample order or trial orders, which can supply
immediatedelivery.
4. Tell us more about your manufacturing process ?
The main manufactuer process is listed in following chart, feel
free to ask more.
