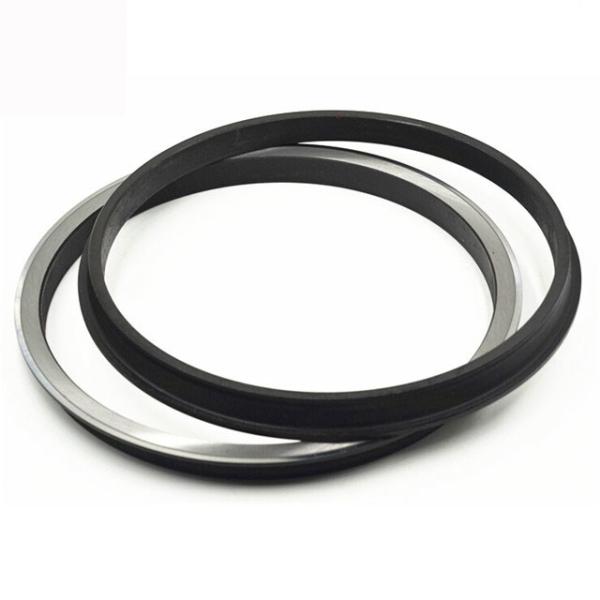

    Mechanical Face Floating Oil Seal For CAT D7E Excavator 9W-6686 9W6686

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 9W-6686 Floating Oil Seal
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    Mechanical Face Floating Oil Seal For CAT D7E Excavator 9W-6686 9W6686

    Mechanical Face Floating Oil Seal For CAT D7E Excavator 9W-6686 9W6686


    Floating Oil Seal introduction


    One SET= 2 metal rings +2 rubber rings
    Specifications of Metal ring
    MaterialGcr15/ 100Cr6Cast 15Cr3Mo
    Surface smoothness/Roughness≤Ra0.2μm6.3-12.5μm
    Work face smoothness≤Ra0.015μm≤Ra0.1μm
    Pressure loading≤0.15MPa≤0.3 MPa
    Forging line speed2m/s3m/s
    Temperature range—100~200℃-40~160°C
    Hardness(HRC)58-6260-68
    Lifetime(Hours)30005000
    Specifications of rubber ring
    MaterialNBRSILICONEFKM
    Hardness60°~ 65°60°~ 65°72°~ 78°
    Minimum tensile strength11MPa10.6Mpa11MPa
    Minimum elongation at break300%400%260%
    Permanent deformation12%8%25%
    Temperature range-40℃- +120℃-49℃- +230℃-30℃- +250℃

    Floating Oil Seal Application


    - Farm, construction, earthmoving, coal mining machinery

    -- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe

    -- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling


    Floating Oil Seal Advantages:


    1. Coexistence of high quality and competitive prices
    2. Long service life
    3. Easy to install
    4. High yield
    5. Good performance


    Method of installation:


    1.Using specialized tools installation: The pressure will apply to the O-ring directly. As shown, the special tool is mounted between the metal floating ring and the rubber ring, toward the seat hole, the rubber ring is evenly pressed into the hole.

    2.Other installation methods: One auxiliary O-ring is fixed between the conical ring surface of the floating oil seal and sealing O-ring (as shown). The ring of the floating oil seal is applied uniformly by pressure and the auxiliary O-ring braces the sealing O-ring to ensure the other correct mounting position.


    Floating Oil Seal OEM


    MachinesPart#
    1110-30-00085 110-30-00045 141-30-00610 140-30-00040 140-30-00141 170-30-00110 170-30-00210
    175-30-00070 175-30-00700 20Y-30-00040 130-27-00020 150-27-00025 150-27-00026 150-27-00027
    204-30-00041 20Y-30-00100 10Y-30-00100 150-30-00035 154-30-00035 154-30-00830 154-30-00832
    154-30-00833 170-27-00010 198-30-00072 21T-30-00110 198-30-00072 423-33-00020 423-33-00021
    205-30-00052 14X-27-00100 566-33-00010 205-30-00050 195-27-00022 175-27-00120 175-30-00900
    205-30-00200 20Y-30-00430 22U-30-00060 22B-30-00030 20Y-30-13210 204-30-00100 198-30-00073
    175-27-00102 205-27-00040 21N-30-00040 207-27-00310 421-33-00050 17M-27-00101 208-27-00140
    195-27-00100 568-33-00016 562-33-00200 TZES 100-154S TZES 100-154B TZ-ES100-250-A
    29G5311 9W6666 1M8747 9W6647 5M1176 6T8433 9G5315 9W6671 9W6680 9W7220 8E5609 9W7225
    6P3595 9G5345 9W6690 9W6691 9W7216 2M2858 9W7223 9W6691 1P7249 5P7146 9W7243 7M0481
    5P0204 7T0159 9W6651 9W7233 7T0157 108-6997 5P0373 9W7213 9P9663 8E2042 9W6694 9W3732
    1141497 9W7201 9W7202 9W6620 9W6619 9W3956 169-6442 6Y0855 9W7204 6Y0856 9G5349 3144128
    205-9025 9W7204 6Y0856 9G5349 1796862 1796863 145-6034 9W6644 9W6822 3T6602 365-4920
    2627244 3176441 9W7206 1796864 1C9748 1456035 3144130 1791292
    34176379 4110358 4128201 4508192 4128201 4508192 4060222 4110359 4512571 4060225 4047279
    4104605 4110360 4153468 4163731 4068433 4153711 4163711 4110362 4153732 4508193 4056360
    4111361 4507221 4642180 4110366 4110367 4513173 4092483 4082631 4110368 4110369 4114753
    4634693 4514259 4179741 4066695 4317584 4138544 4082698 ZAX200-5G XKAH-00916 XKAQ-00219
    XKAH-01012 4245703 / 4200413 / 4350347 / 4344155 4082698

    Floating Oil Seal Details



    Product Tags:

    o ring oil seal



    floating ring seal


    Quality Mechanical Face Floating Oil Seal For CAT D7E Excavator 9W-6686 9W6686 for sale
