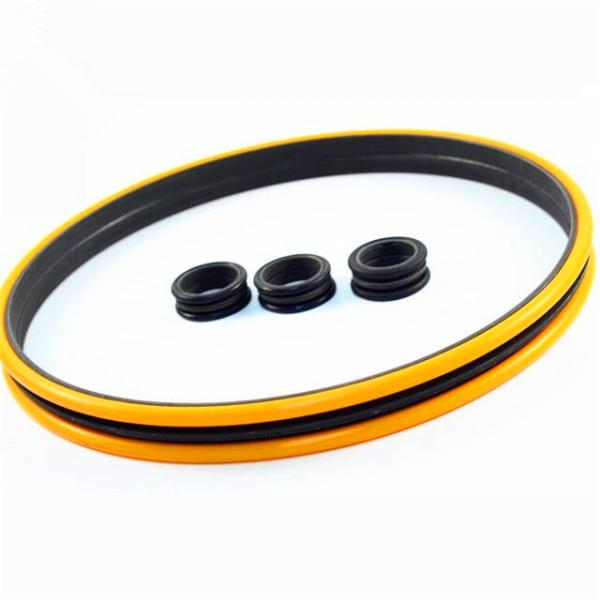

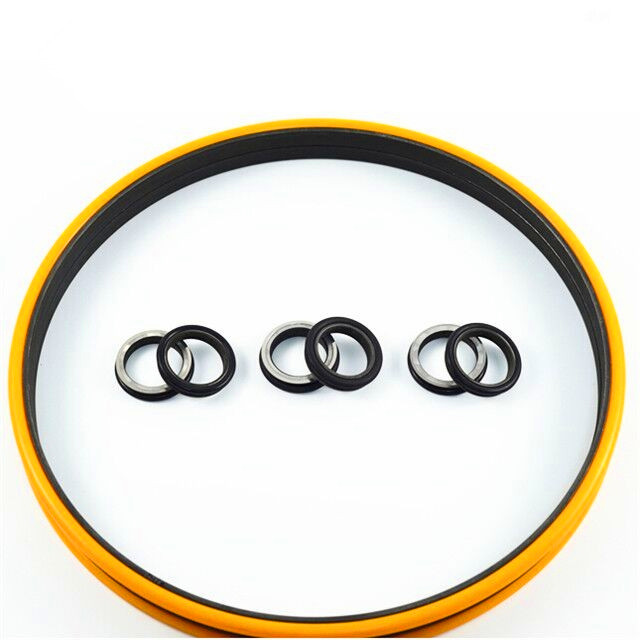

8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals

    Buy cheap 8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals from wholesalers

    Buy cheap 8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals from wholesalers
    • Buy cheap 8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals from wholesalers
    • Buy cheap 8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals from wholesalers

    8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 8E-6326
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals

    8E-6326 Aftermarket Floating Oil Seal Two Metal Sealing Rings And Two Rubber Seals


    • 1 setIt consists of two metal sealing rings and two rubber seals
      P/N8E6326 8E6327
      MOQ2 set
      OEM forE375  5080
      materialGCr15 steel and NBR60, Silicone
      lifetime5000 hours
      FOBWuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
      packageShrink films + Inner box + standard export carton + wood pallet + wood box
      Guarantee18 months
    There are 2 materials:
    Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
    METALSteel Gcr15/ 100Cr6Cast 15Cr3Mo
    Surface smoothness/roughness:≤Ra0.2μm6.3-12.5μm
    Work face smoothness≤Ra0.15μm≤Ra0.1μm
    Pressure loading≤0.15MPa≤0.3 MPa
    Forging line speed2m/s3m/s
    Temperature range—100~200°C-40~160°C
    Hardness (HRC)58-6260-68
    Lifetime (Hours)30005000
    NBR60, silicone and FKM rubber rings are offered
    MaterialNBR60SILICONEFKM
    Hardness60°~ 65°60°~ 65°72°~ 78°
    Minimum tensile strength11MPa10.6Mpa11MPa
    Minimum elongation at break300%400%260%
    Permanent deformation12%8%25%
    Temperature range-40℃- +120℃-49℃- +230℃-30℃- +250℃
    Specific Gravity(g/cm3)1.251.21.8
    Application
    -Farm, construction, earthmoving, coal mining machinery
    -Excavator, bulldozer, tractor, cranes, forklift, Heavy truck, backhoe
    -Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling

    Method of installation:


    1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.

    2. Other methods: An auxiliary O-ring is fixed between the sealing surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied equally by pressure and auxiliary O-ring braces. Sealing the O-ring to ensure other mounting positions.


    OEM covers


    ModelOEM Codes
    Komatsu

    195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

    140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010...

    Kobelco

    R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25,

    R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28...

    CAT1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201...
    Hitachi

    4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110,

    4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64...


    Advantage
    1, Competitive Pricing, 30% - 50% lower than the original parts
    2, ISO certified Products
    3, Experienced team with years of knowledge
    4, In-House engineering and Design Capabilities
    5, Just-in-time Inventory Programs for OEM/OES
    6, MOQ 1 Set
