    9W-6686 HRC58-62 15Cr3Mo Floating Oil Seal

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 9W-6686
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

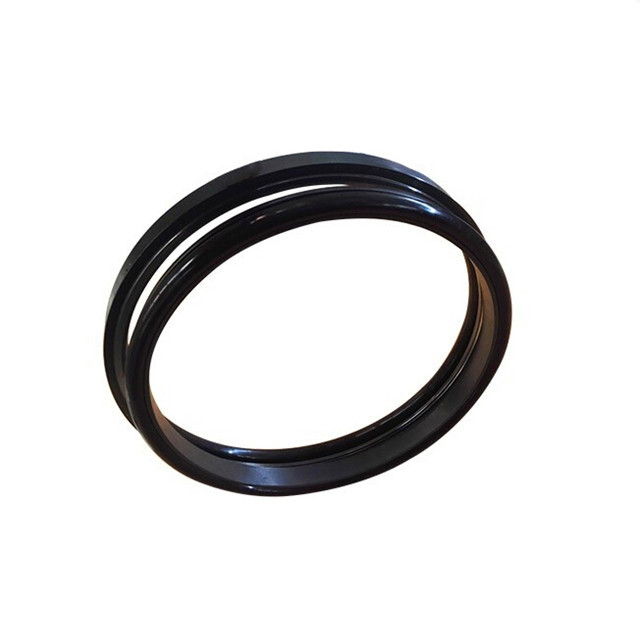

    9W-6686 HRC58-62 15Cr3Mo Floating Oil Seal

    9W-6686 HRC58-62 15Cr3Mo Floating Oil Seal


    Floating Oil Seal Introduction


    We offer a wide range of OEM part numbers floating seal and keep them in stock to ensure quick delivery. From the size ID38MM to 700 mm.


    1 setIt consists of two metal sealing rings and two rubber seals
    Part#9W-6686
    MOQ2 set
    OEM forHD320  HD325
    materialGCr15 steel + NBR60 rubber
    lifetime5000 hours
    FOBWuhan, Shanghai, Qingdao, Ningbo, Shenzhen, Xiamen
    packageShrink films + Inner box + standard export carton + wood pallet + wood box
    Guarantee18 months

    There are 2 materials:


    Steel Gcr15 / 100cr6 and cast iron 15Cr3Mo
    METALSteel Gcr15/ 100Cr6Cast 15Cr3Mo
    Surface smoothness/roughness:≤Ra0.2μm6.3-12.5μm
    Work face smoothness≤Ra0.15μm≤Ra0.1μm
    Pressure loading≤0.15MPa≤0.3 MPa
    Forging line speed2m/s3m/s
    Temperature range—100~200°C-40~160°C
    Hardness (HRC)58-6260-68
    Lifetime (Hours)30005000
    NBR60, silicone and FKM rubber rings are offered
    MaterialNBR60SILICONEFKM
    Hardness60°~ 65°60°~ 65°72°~ 78°
    Minimum tensile strength11MPa10.6Mpa11MPa
    Minimum elongation at break300%400%260%
    Permanent deformation12%8%25%
    Temperature range-40℃- +120℃-49℃- +230℃-30℃- +250℃
    Specific Gravity(g/cm3)1.251.21.8

    Floating Seal Assy Details

    Floating Seal Assy OEM No.
    MachinesPart#
    Komatsu110-30-00085 110-30-00045 141-30-00610 140-30-00040 140-30-00141 170-30-00110 170-30-00210
    175-30-00070 175-30-00700 20Y-30-00040 130-27-00020 150-27-00025 150-27-00026 150-27-00027
    204-30-00041 20Y-30-00100 10Y-30-00100 150-30-00035 154-30-00035 154-30-00830 154-30-00832
    154-30-00833 170-27-00010 198-30-00072 21T-30-00110 198-30-00072 423-33-00020 423-33-00021
    205-30-00052 14X-27-00100 566-33-00010 205-30-00050 195-27-00022 175-27-00120 175-30-00900
    205-30-00200 20Y-30-00430 22U-30-00060 22B-30-00030 20Y-30-13210 204-30-00100 198-30-00073
    175-27-00102 205-27-00040 21N-30-00040 207-27-00310 421-33-00050 17M-27-00101 208-27-00140
    195-27-00100 568-33-00016 562-33-00200 TZES 100-154S TZES 100-154B TZ-ES100-250-A
    Others58845-01500 R45P0018D2 R45P0018D3 TD00348/17 R45P0018D4 5691020160 MT4000-7918
    R45P0018D6 JB5680 619-89900440 71418383 05/903811 1.180-00512 CR3069 XZ993774 MT40211881
    R45P0018D21 R45P0018D25 TD0352/04 0964294 5691020340 5691020530
    R45P0018D12 2445Z1110 R45P0018D27 TD00611/02 R45P0018D13 UK 5500 R45P0018D14
    204-50805000 R45P0018D14 R45P0018D15 760S126FS TLDOA1460 R45P0018D16 R45P0018D18
    R45P0018D8 R45P0018D29 RG-30 OK5110 H-25 JB5820 619-95032001 R45P0018D20 760S247F JS2650S YN53D00008S023 LQ15V00020S067 R45P0018D22 760S297FS YN15V00037S029
    11.3209 24100U1743S24 R45P0018D28 58845- 20500 U14568 45P0018D18 45P0018D18 R45P00018D9
    988430 R45P0018D9 20306 U16184 2445Z1109
