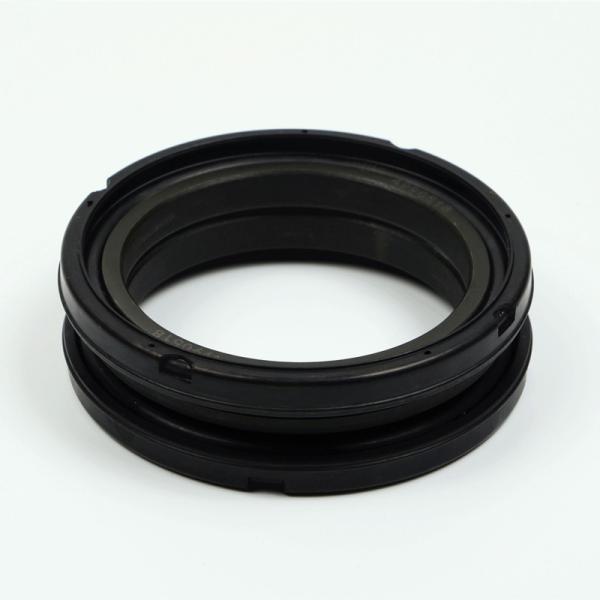

Excavator , Bulldozer 499-0518 O Ring Oil Seal
O Ring Oil Seal Introduction
1.One set=2 metal rings+2 rubber orings
| 2 metal rings | 2 rubber rings |
| size: 50-1000MM(id) | material: NBR//Silicone/HNBR |
| material: fogerd steel or cast iron (Gcr15 &100Cr6) hardess
58-62HRC/65-72HRC | color: Black/Blue/Red/yellow/Custom |
| temperature:-30C+100C | hardness: 60°-65° |
| Speed:2m/s |
O Ring Oil Seal Appliion
Apply for all kinds of brand heavy machine: EXCAVATOR ,BULLDOZER ,TRACTOR
,TRAVEL MOTOR ,FINAL DRIVE ,SWING MOTOR s' articulations of construction vehicles, heavy construction vehicles and agricultural equipment , tunnel boring and underground mining machinery
track rollers of construction machines and mining machinery. the undercarriage of bulldozers and excavators
Various loaders and land levelers, cranes, mixers, mining machines, Off Highway Mining Trucks,Shovels,Continuous Miners,Longwall Shearers,Wheel Ends,Wet & Dry Brakes,axles,heavy trucks ,tracked vehicles,Idlers,Rollers,Gearboxes,Cutting Heads. for aftermarket
Method of installation:
1. Using specialized tools installation: The pressure will apply to
the O-ring directly. As shown, the special tool is mounted between
the metal floating ring and the rubber ring, toward the seat hole,
the rubber ring is evenly pressed into the hole.
2. Other installation methods: One auxiliary O-ring is fixed
between the conical ring surface of the floating oil seal and
sealing O-ring (as shown). The ring of the floating oil seal is
applied uniformly by pressure and the auxiliary O-ring braces the
sealing O-ring to ensure the other correct mounting positions.
O Ring Oil Seal Details
Komatsu, , Hitachi, Kubota, Kobelco, Danapac, Goetze, Trelleborg...
| model# | Bottom roller | Carrier Roller | Front idler | Final Drive |
| PC60 | 110-30-00085 | 140-30-00040 | 141-30-00610 | |
| PC200 | 20Y-30-00040 | 20Y-30-00090 | 10Y-30-00100 | 150-27-00026 |
| E200B | 1M8746 | 8E5609 | 5P0204 | |
| E320 | 9W7220 | 8E5609 | 9W7225 | |
| D60 | 141-30-00616 | 141-30-00616 | 141-30-00610 | 141-27-00015 |
| D85ESS-1 | 154-30-00832 | 154-30-00832 | 154-30-00832 | 192-27-00022 |
| D3 | 9E6690 | 9E7216 | 9E6691 | |
FAQ
-You're the factory?
Yes, we are a 13 years factory in Hubei Province, China
- How do you control the quality?
Each seal is 100% inspected in every process before exported
- How long to make the shipment?
In three days with stocks, 15-30 days according to the order qty.
- Can i buy one to test?
Yes, we offer a trial order and sample order for your Quality
Evaluation.
