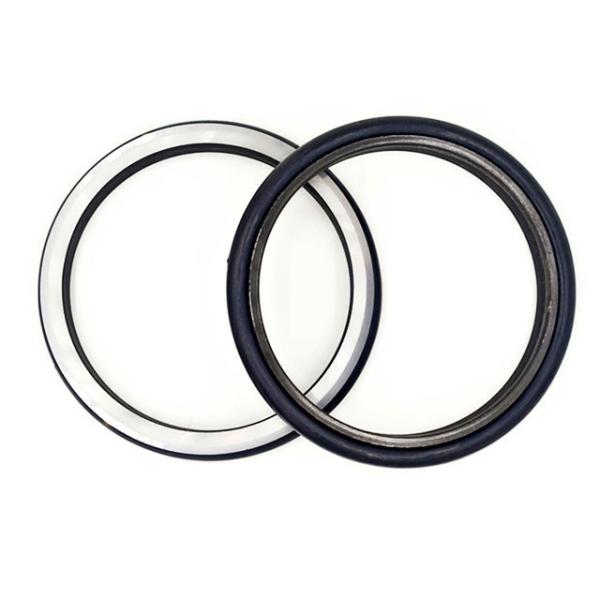

9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime

    Buy cheap 9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime from wholesalers

    Buy cheap 9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime from wholesalers
    • Buy cheap 9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime from wholesalers
    • Buy cheap 9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime from wholesalers

    9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 9P-3663
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime

    9P-3663 CAT Floating Oil Seal Group 5000 Hours / 8000 Hours Lifetime


    • Specifications of Metal ring
      MaterialGcr15/ 100Cr6Cast 15Cr3Mo
      Surface smoothness/Roughness≤Ra0.2μm6.3-12.5μm
      Work face smoothness≤Ra0.015μm≤Ra0.1μm
      Pressure loading≤0.15MPa≤0.3 MPa
      Forging line speed2m/s3m/s
      Temperature range—100~200℃-40~160°C
      Hardness(HRC)58-6260-68
      Lifetime(Hours)30005000
      Specifications of rubber ring
      MaterialNBRSILICONEFKM
      Hardness60°~ 65°60°~ 65°72°~ 78°
      Minimum tensile strength11MPa10.6Mpa11MPa
      Minimum elongation at break300%400%260%
      Permanent deformation12%8%25%
      Temperature range-40℃- +120℃-49℃- +230℃-30℃- +250℃

      Floating Oil Seal Group Application

      -- Farm, construction, earthmoving, coal mining machinery

      -- Excavator, Bulldozer, tractor, cranes, forklift, Heavy truck, backhoe

      -- Undercarraige, hydraulic motor, travel motor, gearbox axle, wheel hub,tunneling


      The advantages of our Floating Oil Seal Group

    1. Coexistence of high quality and competitive prices

    2. Long service life

    3. Easy to install

    4. High yield

    5. Good performance

    Method of installation:


    1.Usingspecialized equipment installation: The pressure will apply to the O-ringdirectly. As shown, the special tool is placed between the metal hole ring and the rubber ring, towards the seat hole, the rubber ring is pressed evenly into the hole.

    2. Other methods: An auxiliary O-ring is fixed between the sealing surface of the floating oil seal and the C-ring (as shown). The floating oil seal ring is applied equally by pressure and auxiliary O-ring braces. Sealing the O-ring to ensure other mounting positions.

    OEM covers


    ModelOEM Codes
    Komatsu

    195-30-00302, 154-30-00831 , 141-30-00616 , 150-27-00017, 207-27-0001, 130-27-00140, 130-27-0001, 14X-27-00101, 150-27-0002, 170-27-00020, 423-33-00020, 17M-27-00101, 287-33-00010, 425-33-00110, 568-33-00016, 209-27-00160, 141-27-00010, 130-27-B0100, 180-27-00021, 175-27-00121,

    140-30-00040 , 130-27-00010 , 150-30-00035 , 170-27-00010...

    Kobelco

    R45P0018D, R45P0018D6, 45P0018D18, R45P00018D9,R45P0018D25,

    R45P0018D12, R45P0018D27, R45P0018D13, R45P0018D14, R45P0018D15, R45P0018D16, R45P0018D18, R45P0018D29, R45P0018D21, YN53D00008S023, R45P0018D22, R45P0018D28...

    CAT1M8746, 9W7225, 9W7220, 8E5609, 8E 5610, 9W 7232, 2M 2858, 9W 7223, 9W 6649, 1M 8747, 9W 6647, 9W 6648, 6V2733, 9W7233,1M 8746, 2P 3395, 1P 7249, 5P 7147, 3P 0433, 5P 9120, 9W 6645,9W 6666, 5K 1078, 9G 5314, 5M 1176, 9W 6674, 9G 5317, 9W7201...
    Hitachi

    4283635, 4176379 , 4177260 , 4082631, 4642180, 4110363, ES-110,

    4110362, 4153732, 4508193, ES-209, 4114753, 4514259, ES-250, 4179741, 4066695, 4138544, 4350347, 4082698, ES-56, ES-64...


    Advantage
    1, Competitive Pricing, 30% - 50% lower than the original parts
    2, ISO certified Products
    3, Experienced team with years of knowledge
    4, In-House engineering and Design Capabilities
    5, Just-in-time Inventory Programs for OEM/OES
    6, MOQ 1 Set
