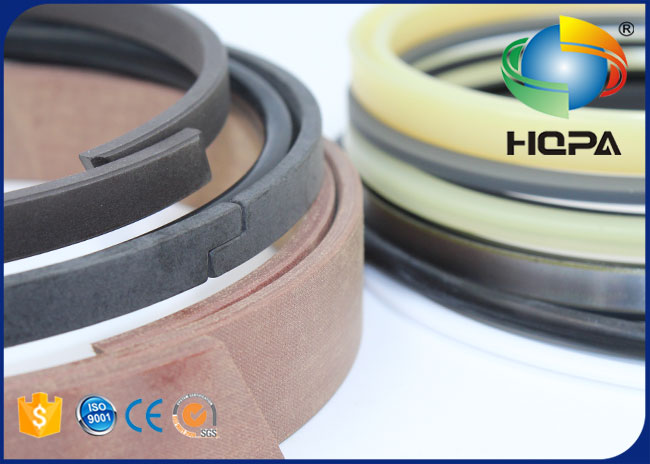

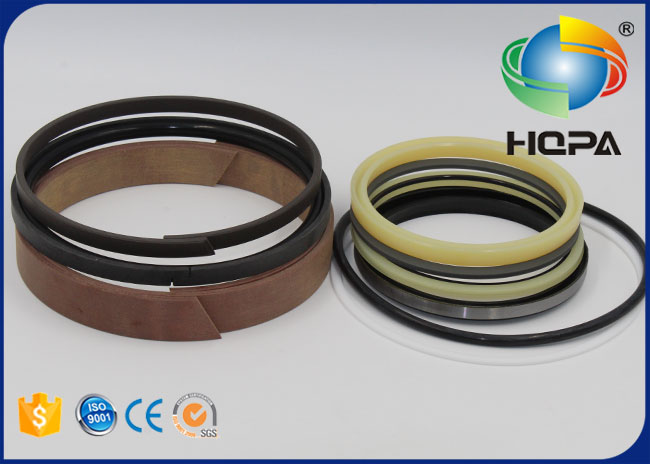

    333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit

    333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit

    1.Product Description:


    Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
    Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
    There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
    Arm cylinder is the top one, and it's usually be called as top cylinder;
    The bucket cylinder is the one that connects and controls the bucket.
    Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.



    2.General Product Information:

    333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit
    Brand NameHQPA/OEM
    Product Name333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit
    Product styleHydraulic Cylinder Seal Kit / Boom Cylinder Seal Kit
    Part No.333-8675 234-4442 518-5135 3338675 2344442 5185135
    Related parts:Swing Motor Seal Kit / Travel Motor Seal Kit / Arm Cylinder Seal Kit / Stick Cylinder Seal Kit/ Boom Cylinder Seal Kit
    ApplicationCAT excavator 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L VG, 349F L
    MOQ1 PC
    Condition100% New Controller
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    345C345D L VG345D349D L349E L
    345C L349D345D L349E349E L VG
    349F L

    When you open and repair the cylinder, please follow below operation:

    1. Take off the cylinder from the machine.

    2. Remove the head assembly nad the rod assembly from the stick cylinder group.

    3.If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.

    4.Meansure the seal kits before fitting.

    5.Install the seals.

    After fix the cylinder assy, test it first before reinstall the stick culinder group on the machine.


    4.Related parts


    333-8675 234-4442 518-5135 3338675 2344442 5185135 Bucket Cylinder Seal Kit


    Part NoParts namePart NoParts name
    358-8521HEAD165-9291SEAL-LIP TYPE
    7Y-4956LOCKNUT (M90X2-THD)358-8525PISTON
    9X-3607SEAL AS191-5604RING
    358-8514ROD AS191-5605RING
    4I-1520BUSHING095-1726SEAL-O-RING
    234-4516CYLINDER AS114-0761BUSHING
    087-5379BUSHING333-8688SEAL-U-CUP
    7Y-4941RING-BACKUP7Y-4945RING-BACKUP
    7Y-4944RING-RETAINING7Y-5239BOLT-SOCKET HEAD (M24X3X100-MM)
    333-8687SEAL-BUFFER333-8675KIT-SEAL (BUCKET CYLINDER)

    5.Notice before installation:


    Install vented buffer seal assembly. The seal assembly consists of one seal and one backup ring.
    Install vented buffer seal in the correct groove of cylinder head . Seal has a groove for backup ring. The groove must face the rod end of the cylinder, to the correct assembly position.
    Install backup ring in seal to the correct assembly position.


    Welcome to contact us, we can provide high quality and the best price!
