    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit For E312D

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit For E312D

    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D

    1.Product Description:


    Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
    Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
    There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
    Arm cylinder is the top one, and it's usually be called as top cylinder;
    The bucket cylinder is the one that connects and controls the bucket.
    Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.



    2.General Product Information:


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D
    Brand NameHQPA/OEM
    Product Name283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D E313D E313D2L E314D
    Product styleBucket Cylinder Seal Kit / Cylinder Seal Kit
    Part No.283-6179 2836179 349-4121 3494121
    Related parts:Swing Motor Seal Kit / Blade Cylinder Seal Kit / Travel Motor Seal Kit / Arm Cylinder Seal Kit / Stick Cylinder Seal Kit/ Boom Cylinder Seal Kit
    ApplicationCAT 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 320D, 320D L, 324D, 324D L, 329D, 329D L, 329D LN, 329E L, 329E LN
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 283-6179 2836179 349-4121 3494121
    Group: Bucket Cylinder Seal Kit
    Fit for model: E312D E313D E313D2L E314D
    Contact: Mr. Sum Huang
    Whatsapp: +8618902494641
    www.excavatorsealkit.com


    When you open and repair the cylinder, please follow below operation:

    1. Take off the cylinder from the machine.

    2. Remove the head assembly nad the rod assembly from the stick cylinder group.

    3.If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.

    4.Meansure the seal kits before fitting.

    5.Install the seals.

    After fix the cylinder assy, test it first before reinstall the stick culinder group on the machine.

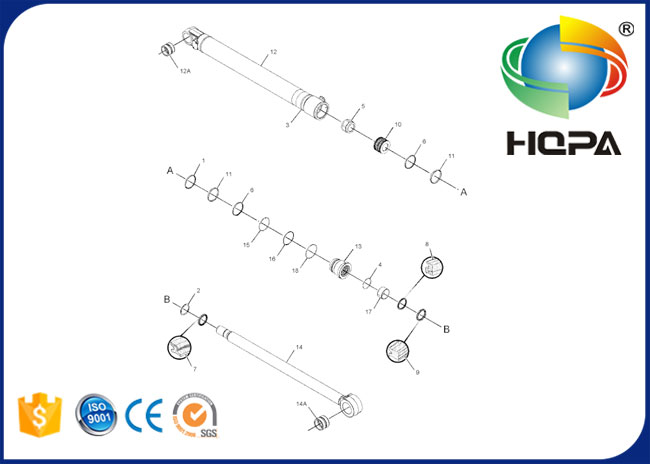

    4.Related parts


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D


    Part NoParts namePart NoParts name
    9X-7298SEAL AS093-1519RING-BACKUP
    099-0600RING099-5400RING-RETAINING
    133-6686LOCKNUT-SPECIAL143-8025RING
    165-9283SEAL-LIP TYPE170-9841SEAL-BUFFER
    170-9857SEAL-U-CUP283-5952PISTON
    283-5953RING289-7700CYLINDER AS
    273-6810BUSHING289-7702HEAD
    289-7743ROD AS248-7857BUSHING
    095-1713SEAL-O-RING099-5399RING-BACKUP
    114-0753BUSHING6V-8467SEAL-O-RING
    283-6179KIT-SEAL (BUCKET CYLINDER)

    5. Related:


    General Order Process:

    * Step1: Contact us by online, Email, skype, WhatsApp.
    * Step2: We discuss prices, lead time, payment terms, shipping mode, packing.
    * Step3: Issuing PI for you and you confirm.
    * Step4: Arrange payment.
    * Step5: Delivery.
    * Step6: Goods reach you.
    * Step7: After-sale service special for you.


    Our Service:

    1. Experienced sealing products supplier.
    2. Professional design team and sales department for your service.
    3. All the questions will be dealt in 24 hours.
    4. Stable quality---coming from good materials.
    5. Lower price---Not cheapest but the lowest at the same quality.
    6. Good service---satisfied factory service before and after sale


    We have important business in the overseas market due to our high quality and reasonable prices.

    Also, we can supply all kinds of excavator spare parts according to customers’ requirements!

    All the picture is just for your reference.

    We can provide service according to the client's requirements!

    We always promise to offer excellent products as well as satisfactory service to our clients all over the world.

    If you have any problems with details please contact us, we can supply different pressure switch, sensor with different models as you like.

    .



    Welcome to contact us, we can provide high quality and the best price!


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D


    283-6179 2836179 349-4121 3494121 Bucket Cylinder Seal Kit for E312D
