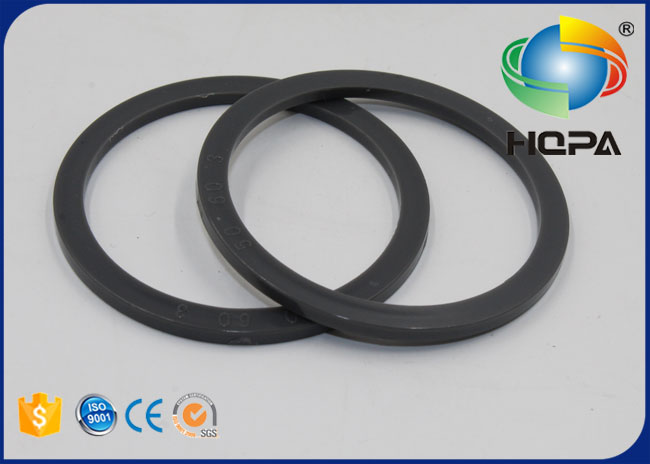

Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.

When you open and repair the cylinder, please follow below operation:

1. Take off the cylinder from the machine.

2. Remove the head assembly and the rod assembly from the stick cylinder group.

3.If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it.

4.Meansure the seal kits before fitting.

5.Install the seals.

After fix the cylinder assy, test it first before reinstall the stick culinder group on the machine.

Part No

Parts name

Part No

Parts name

707-04-00210

CYLINDER ASS'Y

721-11-60950

CYLINDER

02896-11009

O-RING

707-29-60930

HEAD,CYLINDER

07177-03025

BUSHING

707-51-30210

PACKING,ROD

707-56-30740

SEAL,DUST

07179-12042

RING,SNAP

07000-12055

O-RING

07001-02055

RING,BACK-UP

07000-12060

O-RING

707-60-30010

ROD,PISTON

707-34-10600

O-RING

707-35-99600

RING,BACK-UP

707-98-11700

SERVICE KIT

* Seal kits are made of specialized materials for the maximizing durability with wear resistance, properly heat treated body to produce optimum performance of the machine and life time seal and lubrication which were thoroughly checked by standard rule on each seal kit in order to ensure a perfect sealing. Thus, the perfect oil sealed lubrication is assured of life time service operation in terms of retaining the oil lubricant for the perfect operation between piston and cylinder..

We have important business in the overseas market due to our high quality and reasonable prices.

Also, we can supply all kinds of excavator spare parts according to customers’ requirements!

All the picture is just for your reference.

We can provide service according to the client's requirements!

We always promise to offer excellent products as well as satisfactory service to our clients all over the world.

If you have any problems with details please contact us, we can supply different pressure switch, sensor with different models as you like.

.
