    XKAY-00553 XKAY-01517 Swing Motor Seal Kit For Hyundai R500LC-7 R520LC-9

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : XKAY-00553 XKAY-01517 Swing Motor Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    XKAY-00553 XKAY-01517 Swing Motor Seal Kit For Hyundai R500LC-7 R520LC-9

    XKAY-00553 XKAY-01517 Swing Motor Seal Kit for Hyundai R500LC-7 R520LC-9
    1.Product Description:

    Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.

    Swing motor seal kits maintain the power of the swing motor.

    If the swing motor leaks oil, the boom cylinder will be powerless.



    2.General Product Information:


    XKAY-00553 XKAY-01517 Swing Motor Seal Kit for Hyundai R500LC-7 R520LC-9
    Brand NameHQPA/OEM
    Product NameXKAY-00553 XKAY-01517 Swing Motor Seal Kit for Hyundai R500LC-7 R520LC-9
    Product styleSwing Motor Seal Kit / Motor Seal Kit
    Part No.XKAY-00553 XKAY-01517 XKAY00553 XKAY01517
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationHyundai R450LC-7 R450LC-7A R500LC-7 R500LC-7A
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: XKAY-00553 XKAY-01517
    Group: Swing Motor Seal Kit
    Fit for model: Hyundai R450LC-7 R450LC-7A R500LC-7 R500LC-7A

    .

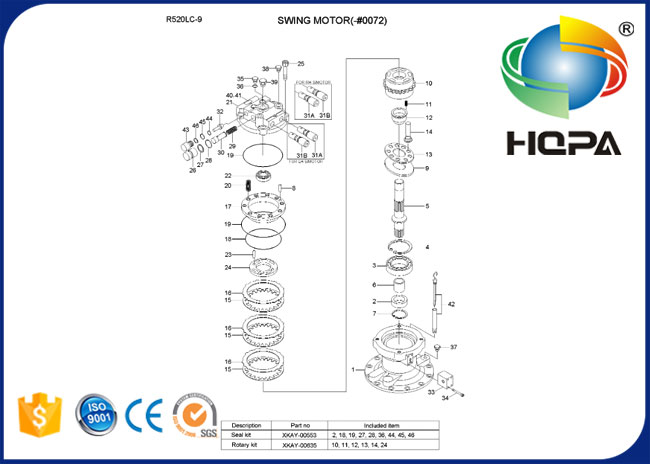

    4.Related parts


    XKAY-00553 XKAY-01517 Swing Motor Seal Kit for Hyundai R500LC-7 R520LC-9


    Part NoParts namePart NoParts name
    31QB-10150SWING MOTOR ASSY-LH31QB-10170SWING MOTOR ASSY-RH
    31QB-10130SWING MOTOR UNIT-LH31QB-10160SWING MOTOR UNIT-RH
    XKAY-00637BODYXKAY-00521SEAL-OIL
    XKAY-00522BEARING-ROLLERXKAY-00523RING-SNAP
    XKAY-01317SHAFTXKAY-00525BUSHING
    XKAY-00526RING-STOPXKAY-00625PIN
    XKAY-00527PLATE-SHOEXKAY-00635ROTARY KIT
    XKAY-00634CYLINDER BLOCK KITXKAY-00633BLOCK-CYLINDER
    XKAY-00531SPRINGXKAY-00544PLATE-VALVE
    XKAY-00532RETAINER KITXKAY-00533GUIDE-BALL
    XKAY-00534PLATE-SETXKAY-00535PISTON KIT
    XKAY-00536PISTON ASSYXKAY-00537PLATE-FRICTION
    XKAY-00538PLATEXKAY-00632PISTON-BRAKE
    XKAY-00468O-RINGXKAY-00540O-RING
    XKAY-00541SPRINGXKAY-01319COVER-REAR
    XKAY-00543BEARING-NEEDLEXKAY-00382PIN
    XKAY-00546BOLT-WRENCHXKAY-00309PLUG
    XKAY-00141RING-BACK UPXKAY-00310O-RING
    XKAY-00311SPRINGXKAY-00312CHECK
    XKAY-01475RELIEF VALVE ASSYXKAY-01476RELIEF VALVE ASSY
    XKAY-00314VLV ASSY-REACTIONLESSXKAY-01318TIME DELAY VALVE ASSY
    XKAY-00149BOLT-WRENCHXKAY-00150PLUG
    XKAY-00151O-RINGXKAY-00140PLUG
    XKAY-00975PLUGXKAY-00548PLUG
    XKAY-01477NAME PLATEXKAY-01478NAME PLATE
    XKAY-00277RIVETXKAY-02139GAUGE-LEVEL
    XKAY-00322PLUGXKAY-00324O-RING
    XKAY-00247O-RINGXKAY-00605RING-BACK UP
    XKAQ-00274PLUGXKAY-00553SEAL KIT
    31QB-10140SWING REDUCTION GEAR31QB-10141SWING REDUCTION GEAR
    31QB-10141ARSWING REDUCTION GEARXKAQ-00637CASING
    XKAQ-00964CASINGXKAQ-00752SHAFT-DRIVE
    XKAQ-00645SHAFT-DRIVEXKAQ-00026BEARING-ROLLER
    XKAQ-00032SEAL-OILXKAQ-00029BEARING-ROLLER
    XKAQ-00647BEARING-ROLLERXKAQ-00961BEARING-ROLLER
    XKAQ-00753CARRIER ASSY 2XKAQ-00075CARRIER 2
    XKAQ-00023GEAR-PLANET 2XKAQ-00643PIN ASSY 2
    XKAQ-00070PIN 2XKAQ-00291BUSHING 2
    XKAQ-00644WASHER-THRUSTXKAQ-00048PIN-SPRING
    XKAQ-00754CARRIER ASSY 1XKAQ-00531CARRIER 1
    XKAQ-00646GEAR-PLANET 1XKAQ-00415PIN 1
    XKAQ-00030CAGE-NEEDLEXKAQ-00417PLATE 1-SIDE
    XKAQ-00416PLATE 2-SIDEXKAQ-00041RING-STOP
    XKAQ-00755GEAR-SUN 2XKAQ-00648GEAR-SUN 1
    XKAQ-00534PLATE-SIDE 3XKAQ-00649GEAR-RING
    XKAQ-00779GEAR-RINGXKAQ-00072PIN-KNOCK
    XKAQ-00404PLATE-THRUSTXKAQ-00074RING-STOP
    XKAQ-00287GEAR-PINIONXKAQ-00978GEAR-PINION
    XKAQ-00018SPACERXKAQ-00031PLATE-COVER
    XKAQ-00064BOLT-HEXXKAQ-00043PLATE-LOCK
    XKAQ-00042BOLT-HEXXKAQ-00044WASHER-LOCK
    XKAQ-00065BOLT-SOCKETXKAQ-00049PLUG
    XKAQ-00274PLUG31NB-40500TURNING JOINT ASSY
    31QB-40500TURNING JOINT ASSY31QB-40501TURNING JOINT ASSY
    34E7-00040HUB34E7-00030SHAFT ASSY
    34E7-01520COVER-MACHINING31E3-0035SPACER
    31E3-0036SHIM31E3-0037SHIM
    31E6-40500SEAL-SLIPPER31Q6-40960SEAL-SLIPPER
    S631-120001O-RINGS631-100004O-RING
    S632-120004O-RINGP220-430205PLUG-HEX
    P220-430202PLUG-HEXS601-090004RING-RETAINING
    S017-120306BOLT-HEXS411-120006WASHER-SPRING
    91E6-27110SEAL KIT91E6-27111SEAL KIT(7-10)

    5. Fitted for below models:


    R160LC-7R160LC-7AR170W-7R170W-7AR180LC-7
    R180LC-7AR200W-7R200W-7AR210/220LC-7HR210-7(INDIA)
    R210-7V(INDIA)R210LC-7R210LC-7(#98001-)R210LC-7AR210LC-7H(#9001-)
    R210LC-9R210NLC-7R210NLC-7AR210NLC-9R210W-9
    R210W-9AR210W9AMHR210W9-MHR210W-9SR215LC-7(INDIA)
    R220LC-7(INDIA)R220LC-9(INDIA)R220LC-9AR220LC-9SR220LC-9S(BRAZIL)
    R220LC-9SHR220NLC-9AR235LCR-9R235LCR-9AR450LC-7
    R450LC-7AR480LC-9R480LC-9AR480LC-9MHR480LC-9S
    R500LC-7R500LC-7AR510LC-7(INDIA)R520LC-9R520LC-9A
    R520LC-9S

    6. FAQ:


    Q1: Do you have a minimum order requirement?

    A: Small trial order is acceptable.


    Q2: Why choose our products:

    1. We can provide you a wide range of oil seals.

    2. With more than 10 years experience.

    3. Our oil seals has best quality and best service with competitive price.


    Q3: To which places have you exported?

    A: Global.


    Q4: How long is your delivery time?

    A: Generally it takes 1-2 days if we have stock.

    .


    Welcome to contact us, we can provide high quality and the best price!
