    TZ971B901000 TZ971B9010-00 Travel Motor Seal Kit For Komatsu PC75UU PC78US-5

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : TZ971B901000 TZ971B9010-00 Travel Motor Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

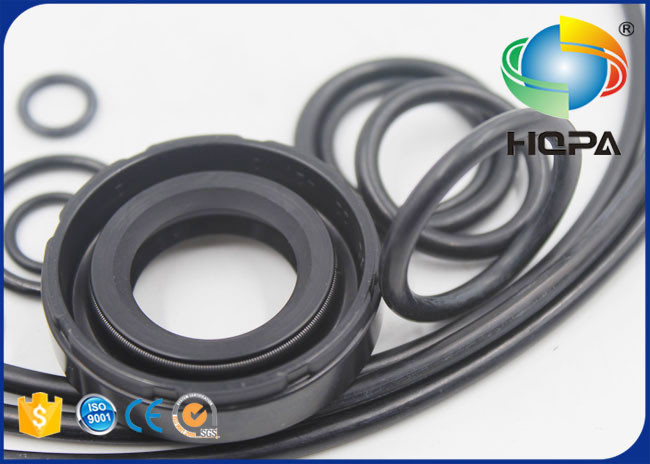

    TZ971B901000 TZ971B9010-00 Travel Motor Seal Kit For Komatsu PC75UU PC78US-5

    TZ971B901000 TZ971B9010-00 Travel Motor Seal Kit for Komatsu PC75UU PC78US-5
    1.Product Description:

    The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track.
    The power comes from the hydraulic system.
    When you find the travel lose power, there might be because the oil leakage caused to the travel motor.
    In other words, the travel motor seal kit prevents oil from leaking and maintains power.



    2.General Product Information:


    TZ971B901000 TZ971B9010-00 Travel Motor Seal Kit for Komatsu PC75UU PC78US-5
    Brand NameHQPA/OEM
    Product NameTZ971B901000 TZ971B9010-00 Travel Motor Seal Kit for Komatsu PC75UU PC78US-5
    Product styleTravel Motor Seal Kit / Motor Seal Kit
    Part No.TZ971B901000 TZ971B9010-00
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC60-7 PC60-7S PC60-7E PC60-7E-B PC60-7-B PC75UU-3 PC75US-3 PC75UD-3 PC70-7 PC70-7E PC70-7-B PC70-7E-B PC60-7S-B PC78US-5
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: TZ971B901000 TZ971B9010-00
    Group: Travel Motor Seal Kit
    Fit for model: Komatsu PC75UU PC78US-5

    .


    4.Related spare parts:


    TZ971B901000 TZ971B9010-00 Travel Motor Seal Kit for Komatsu PC75UU PC78US-5


    Part NoParts namePart NoParts name
    201-60-73101TRAVEL MOTOR ASS'YTZ979B200000FGMOTOR ASS'Y
    TZ979B210100-GFLANGE KIT,REARTZGDL1-16-SPLUG
    TZGM1-8PLUGTZ121F2070-00ORIFICE
    TZ976B2079-00FILTERTZ512B2021-00PLUG
    07000-12011O-RINGTZ850A0006-00PLATE, NAME
    04260-00793BALLTZ920B2004-00BLOCK,CYLINDER
    TZ810B2105-00PISTON KIT (9 PIECES)TZ844B200300-FPLATE,SWASH
    TZ970B2032-00PLATE,THRUSTTZ920B2007-00PLATE,RETAINER
    TZ810B2008-00BOWL,THRUSTTZJB150625-238PIN
    TZ810B2014-00SPRINGTZ880A2010-00WASHER
    TZTH-R-42RING,SNAPTZ800A2016-00PLATE
    TZ800A2015-00PLATETZ266B2012-00PISTON
    TZ266B2039-00O-RINGTZ266B2035-00O-RING
    TZ860A2009-01PLATE,TIMING06000-06203BEARING
    TZ970B2013-00SPRINGTZ910B2002-00SHAFT
    TZ880A2029-00BEARINGTZ15Z-22-42-10SEAL,OIL
    TZ844B2070-01PISTON ASS'YTZ844B2085-00SPRING
    TZ263B2076-02PIVOTTZ263B2077-01PIN
    TZJB1354-4-10PINTZ200B2073-00VALVE
    TZ300B2043-01SPRINGTZ300B2039-00STOPPER
    TZ300B2042-00RINGTZ971B9010-00SEAL KIT,TRAVEL MOTOR
    201-60-73101TRAVEL MOTOR ASS'YTZ979B200000FGMOTOR ASS'Y
    01252-31030BOLTTZ869A2052-00RETAINER
    TZ860A2056-00SPRINGTZ860A2051-00PLUG
    TZJB2401-P26-9O-RINGTZ860A2054-01VALVE
    TZ860A2055-01SPRINGTZ860A2053-02PLUG
    07000-12016O-RINGTZ100A2021-00PLUG
    07002-02034O-RINGTZJB1354-8-25PIN
    TZ971B9010-00SEAL KIT,TRAVEL MOTOR201-60-73101TRAVEL MOTOR ASS'Y
    TZ971B1000-00FINAL SUB ASS'YTZ810B1001-00HUB
    TZ970B1102-00SPINDLE KITTZ970B1132-00SPINDLE ASS'Y
    TZMB700-060PLUGTZ910B1019-01BOLT,REAMER
    TZ192-230-30-AFLOATING SEAL ASS'YTZES100-192-BSEAL,FLOATING
    TZ860A1010-02PIECE,DISTANCE07000-15230O-RING
    TZ810B1021-00BEARINGTZ970B1104-00RV GEAR ASS'Y
    TZ970B1204-00RV GEARTZ910B1009-00SHAFT,CRANK OEM
    TZ910B1023-00BEARING OEMTZ910B1012-00SPACER


    5. Fitted for below models:


    PC60-7PC60-7SPC60-7EPC60-7E-BPC60-7-B
    PC75UU-3PC75US-3PC75UD-3PC70-7PC70-7E
    PC70-7-BPC70-7E-BPC60-7S-BPC78US-5
