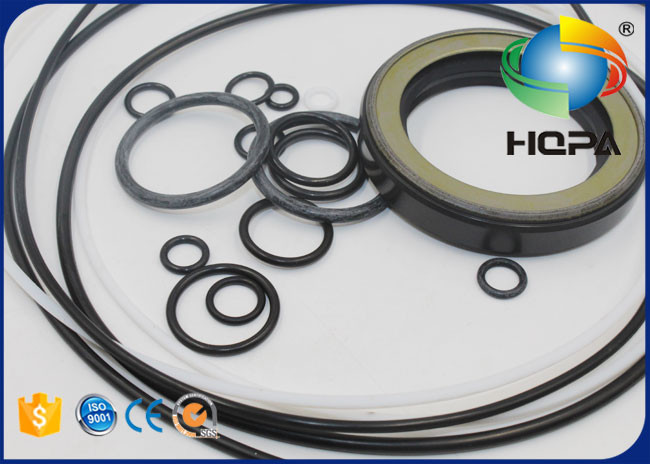

    708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit For Komatsu PC200LC-7 PC210LC-7

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit For Komatsu PC200LC-7 PC210LC-7

    708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit for Komatsu PC200LC-7
    1.Product Description:

    The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track.
    The power comes from the hydraulic system.
    When you find the travel lose power, there might be because the oil leakage caused to the travel motor.
    In other words, the travel motor seal kit prevents oil from leaking and maintains power.



    2.General Product Information:


    708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit for Komatsu PC200LC-7 PC210LC-7
    Brand NameHQPA/OEM
    Product Name708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit for Komatsu PC200LC-7 PC210LC-7
    Product styleTravel Motor Seal Kit / Motor Seal Kit
    Part No.708-8F-00171KT 708-8F-00170KT 708-8F-00171 708-8F-00170 7088F00171 7088F00170
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC200-7 PC200-7-AA PC200-7-AP PC200LC-7 PC200LC-7-BA PC200LC-7-BP PC210LC-7-DA PC210LC-7-DG PC210-7-CA PC210-7-CG PC200LC-7L
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 708-8F-00171KT 708-8F-00170KT
    Group: Travel Motor Seal Kit
    Fit for model: Komatsu PC200-7 PC200-7-AA PC200-7-AP PC200LC-7 PC200LC-7-BA PC200LC-7-BP PC210LC-7-DA PC210LC-7-DG PC210-7-CA PC210-7-CG PC200LC-7L


    4.Related parts


    708-8F-00171KT 708-8F-00170KT Travel Motor Seal Kit for Komatsu PC200LC-7 PC210LC-7


    Part NoParts namePart NoParts name
    20Y-27-00351FINAL DRIVE ASS'Y20Y-27-00300FINAL DRIVE ASS'Y
    708-8F-00171MOTOR ASS'Y,(SEE FIG.P1210-03A0)150-27-00410FLOATING SEAL ASS'Y
    150-27-00264SEAL RING ASS'Y04020-01228PIN
    14S-27-00110O-RING ASS'Y20Y-27-31120HUB
    20Y-27-31220HUB20Y-27-31130BEARING
    20Y-27-22230BEARING20Y-27-22280O-RING
    20Y-27-22261LOCK20Y-27-31180LOCK
    20Y-27-22270LOCK01010-81020BOLT
    20Y-27-22170CARRIER20Y-27-22140GEAR
    20Y-27-22220BEARING20Y-27-21250WASHER
    20Y-27-31160PIN20Y-27-21230PIN
    20Y-27-21290PIN20Y-27-13310WASHER
    20Y-27-22130GEAR20Y-27-22240WASHER
    20Y-27-22150GEAR20Y-27-31110CARRIER
    20Y-27-22160CARRIER20Y-27-22120GEAR
    20Y-27-22210BEARING20Y-27-21240WASHER
    20Y-27-21220PIN20Y-27-21280PIN
    20Y-27-31140SHAFT20Y-27-31210SHAFT
    20Y-27-21310WASHER20Y-27-31150COVER
    20Y-27-31230COVER20Y-27-22250BUTTON
    01010-61230BOLT20Y-27-13281BOLT
    01643-31232WASHER01643-31645WASHER
    07049-01012PLUG20Y-27-31190PLUG
    07044-12412PLUG07002-12434O-RING
    20Y-27-11582SPROCKET20Y-27-11561BOLT
    01010-61660BOLT20Y-30-21191COVER
    01010-81230BOLT708-8F-00171MOTOR ASS'Y,(SEE FIG.P1210-03A0)
    702-73-11330SPRING723-46-48910SEAL
    702-73-11340SCREW702-72-11170NUT
    708-8F-00171MOTOR ASS'Y,(SEE FIG.P1210-03A0)708-8F-32120SHAFT
    708-8F-12151BEARING708-7L-12140BEARING
    708-7L-05010SPACER KIT702-73-02112VALVE ASS'Y,RELIEF
    706-7G-11291SEAL,OIL708-8F-12230SPACER¤ 3.2MM
    04065-07225RING708-8F-33360PIN
    708-7L-13140SEAT708-8F-33160SPRING
    04065-04818RING,SNAP708-8F-33350GUIDE,RETAINER
    708-8F-33340RETAINER,SHOE708-8F-33310PISTON SUB ASS'Y
    708-8F-33480CAM,ROCKER708-8F-33710BALL,RETAINER
    708-8F-34141PISTON708-8F-34150SPRING
    708-8F-35110PLATE708-8F-35130PLATE
    708-8F-35120DISC708-8F-35140PISTON,BRAKE
    708-8F-35160O-RING708-8F-35170RING,BACK-UP
    708-8F-35180O-RING708-8F-35190RING,BACK-UP
    708-8F-35150SPRING04025-00324PIN,SPRING
    708-8F-00171MOTOR ASS'Y708-8F-04660CASE SUB ASS'Y
    708-8F-31210BOLT708-8F-04181END COVER SUB ASS'Y
    708-8F-34220SPRING708-8H-11530PLUG
    07002-11423O-RING20B-27-11210BLEEDER
    708-8F-36611SPRING708-8H-36121SPRING
    708-8F-36311COVER07000-13040O-RING
    700-93-11320O-RING07000-11009O-RING
    01252-61235BOLT708-8F-34120VALVE
    722-10-91130SPRING708-8F-34110PLUG
    07002-11823O-RING708-8E-16180VALVE
    708-8F-31650PLUG07000-11006O-RING
    07001-01006RING07002-11223O-RING
    708-8F-31610O-RING

    5. Fit for below models:


    PC200-7PC200-7-AAPC200-7-APPC200LC-7PC200LC-7-BA
    PC200LC-7-BPPC210LC-7-DAPC210LC-7-DGPC210-7-CAPC210-7-CG
    PC200LC-7L

    6. Our advantage:


    1. We have a professional team, more than 10 years of experience parts.


    2. We can offer used and new, OEM, good quality made in china parts to you.


    3. All parts can check with part number, all parts can order follow the part number.


    4. Quick delivery time, in 24 hours if there is stock.


    5. Safe packing to protect the goods, such as wooden boxes, Iron sheets for our parts.


    6. A small quantity can be accepted. The sample order also accepted.


    7. 24 hours oversea service.


    8.Lifelong after-sales service.



    Welcome to contact us, we can provide high quality and the best price!
