    708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit For Komatsu PC50UU-2

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

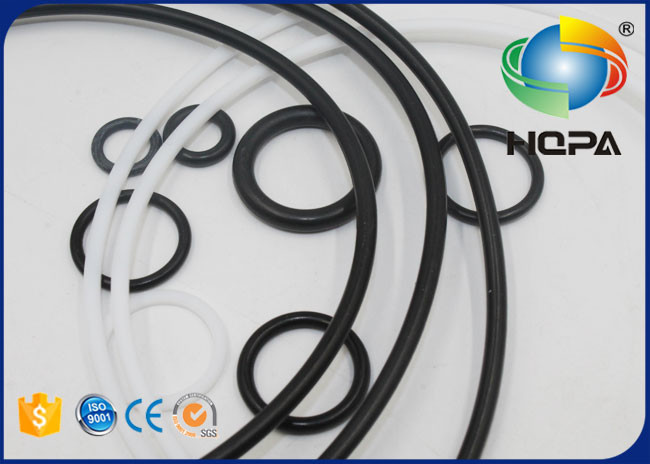

    708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit For Komatsu PC50UU-2

    708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit for Komatsu PC50UU-2
    1.Product Description:

    Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.

    Swing motor seal kits maintain the power of the swing motor.

    If the swing motor leaks oil, the boom cylinder will be powerless.



    2.General Product Information:


    708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit for Komatsu PC50UU-2
    Brand NameHQPA/OEM
    Product Name708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit for Komatsu PC50UU-2
    Product styleSwing Motor Seal Kit / Motor Seal Kit
    Part No.708-7R-00053KT 708-7R-00052KT 708-7R-00050KT 708-7R-00053 708-7R-00052 708-7R-00050 7087R00053 7087R00052 7087R00050
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC50UUM-2 PC50UG-2 PC50UU-2 PC50UD-2
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 708-7R-00053 708-7R-00052 708-7R-00050
    Group: Swing Motor Seal Kit
    Fit for model: Komatsu PC50UUM-2 PC50UG-2 PC50UU-2 PC50UD-2

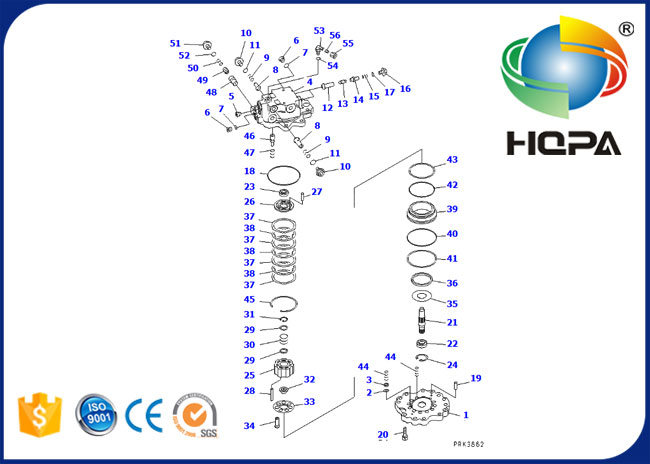

    4.Related parts


    708-7R-00053 708-7R-00052 708-7R-00050 Swing Motor Seal Kit for Komatsu PC50UU-2


    Part NoParts namePart NoParts name
    708-7R-00190MOTOR ASS'Y708-7R-00053MOTOR ASS'Y
    708-7R-00052MOTOR ASS'Y708-7R-00051MOTOR ASS'Y
    708-7R-00050MOTOR ASS'Y708-7R-01120MOTOR SUB ASS'Y
    708-7R-01032MOTOR SUB ASS'Y708-7R-01031MOTOR SUB ASS'Y
    708-7R-01030MOTOR SUB ASS'Y708-7R-11611PLATE,SWASH
    708-7R-11710WASHER708-7R-11720FILTER
    708-7R-04090HOUSING SUB ASS'Y708-7R-04031HOUSING SUB ASS'Y
    708-7R-04030HOUSING SUB ASS'Y708-7R-11220PLUG
    07002-11223O-RING708-7R-11210VALVE
    722-10-91130SPRING709-32-12861PLUG
    07002-11823O-RING708-7R-03020VALVE SUB ASS'Y
    708-7R-11230VALVE708-7R-11240POPPET
    708-7R-11250PLUG708-7R-11270PLUG
    07000-02125O-RING720-68-19610PIN
    01252-61230BOLT708-7R-12111SHAFT
    708-7R-12140BEARING708-7R-12150BEARING
    04065-04218RING708-7R-13111BLOCK,CYLINDER
    708-7R-13220PLATE,VALVE708-7R-13540PIN
    708-7R-13530WASHER708-7R-13560SPRING
    708-7R-13550SPRING04065-03012RING
    708-7R-13510GUIDE,RETAINER708-7R-13340RETAINER,SHOE
    708-7R-13310PISTON SUB ASS'Y708-7R-13410PLATE,THRUST
    708-7R-13581SPACER708-7R-13570SPACER
    708-7R-15130PLATE708-7R-15121DISC
    708-7R-15140PISTON,BRAKE07000-12110O-RING
    708-7R-15170RING,BACK-UP07000-12095O-RING
    07001-02095RING,BACK-UP708-7R-15150SPRING
    708-7R-15160RING708-7R-15712PISTON
    708-7R-15722SPRING708-7R-03010VALVE SUB ASS'Y
    708-7R-15670SPRING706-73-72680PLUG
    07235-10422ELBOW07002-12034O-RING
    07221-20422NUT,SLEEVE07222-00414PLUG
    07000-12016O-RING702-73-11770RING,BACK-UP
    07002-12434O-RING708-7R-11380PLATE
    07000-11007O-RING01252-60825BOLT
    20U-26-00043SWING MACHINERY A.20U-26-00042SWING MACHINERY A.
    20U-26-00041SWING MACHINERY A.20T-26-81180CARRIER
    20T-26-81121GEAR20S-26-81260PIN
    20T-26-81430BEARING20S-26-71160WASHER
    20S-26-71190RING20S-26-71250PIN
    20T-26-81190CARRIER20T-26-81140GEAR
    20T-26-81250PIN20T-26-71190BEARING
    20T-26-81151GEAR20T-26-81150GEAR
    20T-26-81231SPACER20U-26-22110SHAFT
    20T-26-71221BEARING20U-26-22160BEARING
    20T-26-81210SEAL20U-26-22121CASE
    20U-26-22120CASE01253-61210BOLT
    01252-61290BOLT01643-51232WASHER
    20T-26-81240WASHER20T-26-81220SEAL
    20T-26-81110GEAR20T-26-81130GEAR
    07049-01215PLUG04064-04018RING
    20U-26-22130SHIM¤ 0.8MM20U-26-22140SHIM¤ 0.1MM
    20U-26-22150SHIM¤ 1.0MM708-7R-00190MOTOR ASS'Y
    708-7R-00053MOTOR ASS'Y708-7R-00052MOTOR ASS'Y
    708-7R-00051MOTOR ASS'Y20S-26-81310RING
    708-7T-51210O-RING07236-10422ELBOW
    07002-12034O-RING21X-62-21140ELBOW
    07235-10422ELBOW07235-10210ELBOW
    07002-01423O-RING07230-20210UNION
    01010-81245BOLT01643-31232WASHER

    5. Service:


    · Wide product range and deliver goods in time

    · Choosing the best quality of products (if we don't make) for customers in the whole China.

    · Guaranteed quality and pretty competitive price.

    · Products are superior in quality. Each product must pass strict inspection by our QC and engineer.

    · Accept orders for products custom-made according to your drawings or technical specification.


    Welcome to contact us, we can provide high quality and the best price!
