706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5

    Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers

    Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers
    • Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers
    • Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers
    • Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers
    • Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers
    • Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers
    • Buy cheap 706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5 from wholesalers

    706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 706-73-01071KT 706-73-01071 Swing Motor Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

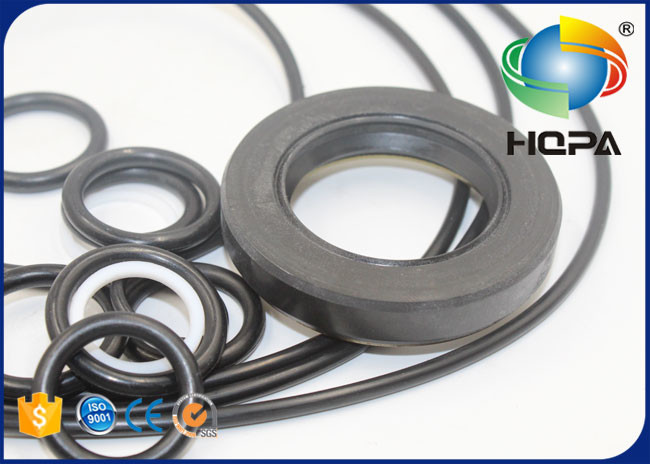

    706-73-01071KT 706-73-01071 Swing Motor Seal Kit For Komatsu PC100-5 PC120-5

    706-73-01071KT 706-73-01071 Swing Motor Seal Kit for Komatsu PC100-5 PC120-5
    1.Product Description:

    Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.

    Swing motor seal kits maintain the power of the swing motor.

    If the swing motor leaks oil, the boom cylinder will be powerless.



    2.General Product Information:


    706-73-01071KT 706-73-01071 Swing Motor Seal Kit for Komatsu PC100-5 PC120-5
    Brand NameHQPA/OEM
    Product Name706-73-01071KT 706-73-01071 Swing Motor Seal Kit for Komatsu PC100-5 PC120-5 PC120-6
    Product styleSwing Motor Seal Kit / Motor Seal Kit
    Part No.706-73-01071KT 706-73-01071 7067301071KT 7067301071
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC100-5Z PC100-5 PC100-5C PC100-5S PC100L-5 PC120-5Z PC120-5 PC120-5X PC120-5M PC120-5S PC120-5C PC130-5 PC130-5S PC120-5K PC130-5K PC150HD-5K PC150NHD-5K
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 706-73-01071KT 706-73-01071
    Group: Swing Motor Seal Kit
    Fit for model: Komatsu PC100-5Z PC100-5 PC100-5C PC100-5S PC100L-5 PC120-5Z PC120-5 PC120-5X PC120-5M PC120-5S PC120-5C PC130-5 PC130-5S PC120-5K PC130-5K PC150HD-5K PC150NHD-5K

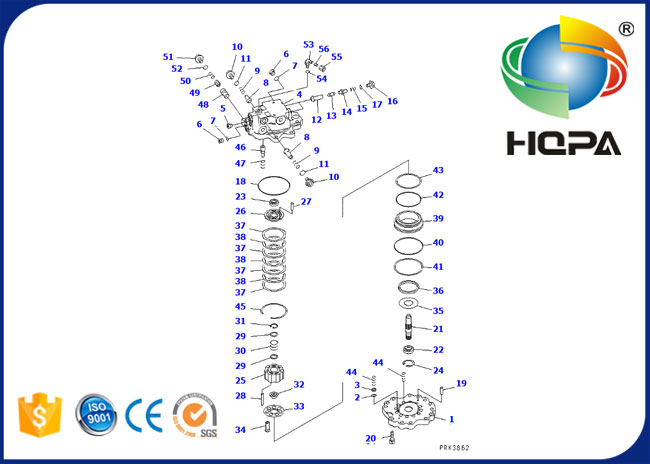

    4.Related parts


    706-73-01071KT 706-73-01071 Swing Motor Seal Kit for Komatsu PC100-5 PC120-5


    Part NoParts namePart NoParts name
    706-73-01071SWING MOTOR ASS'Y706-73-72461HOUSING
    706-73-42121CASE,BRAKE706-73-92160SPRING
    706-74-40320BOLT195-30-33190O-RING
    706-73-41091BLOCK,CYLINDER706-73-42740PLATE,VALVE
    04020-00616PIN,DOWEL706-73-41163PISTON ASS'Y
    706-73-41220BALL,CENTER706-73-41110SPRING
    706-73-41130RING,CENTER706-73-40010BEARING
    706-73-42661SHAFT,DRIVE706-73-42260RETAINER
    706-73-42270SCREW706-73-92180PISTON,BRAKE
    07000-12130O-RING07000-12145O-RING
    706-73-42820PIN,DOWEL706-73-92140PLATE
    706-75-90050DISK706-73-92130PLATE
    706-74-41880BEARING706-75-40890BEARING
    706-73-42610SPRING706-73-42620SEAT
    706-73-05010SPACER KIT04064-04018RING,SNAP
    706-73-42711COVER708-8D-12210SEAL,OIL
    07000-02080O-RING04065-08530RING,SNAP
    706-77-72280PLUG07002-12034O-RING
    706-77-72170PLUG07002-12434O-RING
    706-73-72420VALVE706-73-72440SPRING
    706-73-72430PLUG702-73-01200VALVE ASS'Y,C.O.R. (SEE FIG. 6442)
    706-73-01071SWING MOTOR ASS'Y702-73-01200VALVE ASS'Y,C.O.R.
    07001-02016RING,BACK-UP07002-12434O-RING
    07000-22016O-RING703-08-33110SWIVEL JOINT ASS'Y
    703-08-91730ROTOR703-08-95611SEAL
    703-08-96510SEAL,OIL04077-00100RING,SNAP
    703-08-92740SHAFT,SWIVEL07043-20108PLUG
    703-08-98611PLUG07002-12034O-RING
    703-08-94510RING04064-07525RING,SNAP
    703-08-93510COVER07000-02105O-RING
    01010-50835BOLT01643-30823WASHER

    5. Fitted for below models:


    PC100-5ZPC100-5PC100-5CPC100-5SPC100L-5
    PC120-5ZPC120-5PC120-5XPC120-5MPC120-5S
    PC120-5CPC130-5PC130-5SPC120-5KPC130-5K
    PC150HD-5KPC150NHD-5K

    6. Payment term:


    1. T/T
    2. Western Union
    3. Paypal
    4. Credit Card Available
    5. L/C (Letter of Credit)
    6. O/A(open account trade)
    7. D/P (Documents against Payment)
    8. D/A(Documents against Acceptance)
    9. 30%deposit, 70%balance before the shippment


    Welcome to contact us, we can provide high quality and the best price!
