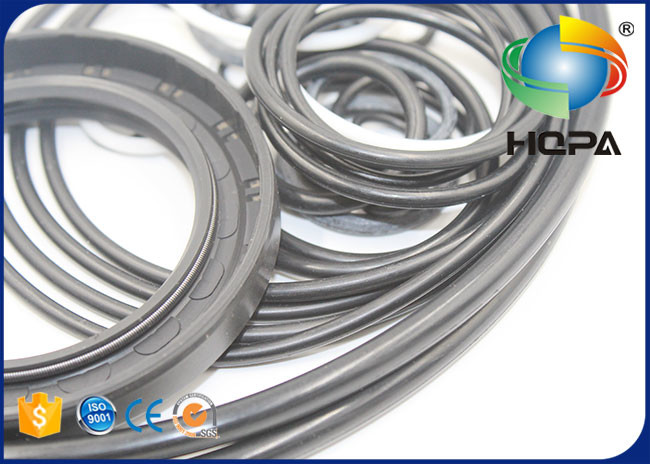

VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B

    Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers

    Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers
    • Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers
    • Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers
    • Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers
    • Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers
    • Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers
    • Buy cheap VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B from wholesalers

    VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : VOE14554877 14554877 Hydraulic Main Pump Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    VOE14554877 14554877 Hydraulic Main Pump Seal Kit For Volvo EC460B

    VOE14554877 14554877 Hydraulic Main Pump Seal Kit for Volvo EC460B
    1.Product Description:

    The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


    Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.

    And to maintain the power of the hydraulic main pump.



    2.General Product Information:


    VOE14554877 14554877 Hydraulic Main Pump Seal Kit for Volvo EC460B
    Brand NameHQPA/OEM
    Product NameVOE14554877 14554877 Hydraulic Main Pump Seal Kit for Volvo EC460B
    Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
    Part No.VOE14554877 14554877
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationVolvo EC460B, EC460C
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: VOE14554877 14554877
    Group: Hydraulic Main Pump Seal Kit
    Fit for model: Volvo EC460B, EC460C
    Contact: Mr. Sum Huang
    Whatsapp: +8618902494641
    www.excavatorsealkit.com

    .


    4.Related parts


    Part Number: VOE14554877 14554877 Group: Hydraulic Main Pump Seal Kit Fit for model: Volvo EC460B, EC460C Contact: Mr. Sum Huang Whatsapp: +8618902494641 www.excavatorsealkit.com


    Part NoParts namePart NoParts name
    VOE14526609PumpVOE14594327Piston
    VOE14536029PistonVOE14536028Seat
    VOE14563796CylinderVOE14536030Block
    VOE14502325PlateVOE14536025Cylinder
    VOE14536030BlockVOE14502324Plate
    VOE14502011PlateVOE14560637Plug
    SA8230-26310BushingVOE979022Hexagon nut
    VOE14536032ShaftVOE14536031Shaft
    SA8230-09360Connecting rodSA7241-00421Roller bearing
    VOE14511981BearingSA8230-08850Spacer
    SA8230-09090Hydraulic unitVOE14536027Plate
    VOE14510070BushingSA7223-00180Spring
    VOE14512543PlateSA7223-00210Plate
    SA7223-00260SupportVOE14551796Cover
    SA7223-00290CasingSA8230-08990Cover
    VOE14622760CoverSA7223-00390Hex. socket screw
    SA8230-09900Hex. socket screwVOE13967630Allen Hd Screw
    VOE14883837PlugSA9415-11051Plug
    VOE14560637PlugVOE14512382Plug
    VOE14536023PinVOE14536034Pin
    VOE14535454O-ringVOE14536033Piston
    SA7223-00420StopSA7223-00430Stop
    SA7223-00690O-ringVOE14535385O-ring
    VOE14535386O-ringVOE14533034O-ring
    VOE14533035O-ringVOE14534030O-ring
    VOE14534029O-ringVOE14535387O-ring
    SA7223-00700O-ringVOE14535388Seal
    VOE14692341RingSA7223-00650Ring
    VOE14534044O-ringVOE914470Snap ring
    SA7242-10560PinSA7223-00660Spring pin
    VOE14880555Eye boltSA7223-00670Set screw
    SA7223-00680Set screwVOE14512544Cover
    VOE983919Hex. socket screwVOE14554877Sealing kit
    VOE14536037RegulatorVOE14536038Regulator
    SA8230-25880Hex. socket screwSA8240-03580Bolt
    SA8230-25910Hex. socket screwSA8230-25920Bolt
    SA8230-25860BoltSA8230-25850Bolt
    VOE14883837PlugSA7223-00450Non-return valve
    SA14535204SeatSA14535205Stop
    SA8230-32080ValveVOE14502326Casing
    VOE14536036LeverSA8230-09440Lever
    SA8230-09450LeverSA8230-09460Plug
    SA8230-09470PlugVOE14500061Piston
    VOE14500060CaseSA8230-09500Rod
    SA8230-09510SeatVOE14500010Spring
    VOE14511634SpringSA8230-09530Stem
    SA8230-09540ScrewSA8230-09240Cover
    SA8230-09550Lock nutVOE14500009Sleeve
    SA8230-09340CoverSA8230-09560Piston
    SA8230-09570SeatVOE14512929Stem
    VOE14535455O-ringSA8230-09330Sleeve
    VOE14502330SpoolSA8230-09600Seat
    SA8230-09630SpringSA8230-09610Spring
    VOE14502332CoverVOE14502335Casing
    VOE14502333PlateVOE14534051O-ring
    VOE14529756O-ringVOE14534030O-ring
    VOE14534050O-ringVOE14534028O-ring
    VOE14534049O-ringVOE14528250O-ring
    VOE14534048O-ringVOE14534047O-ring
    VOE14529757O-ringVOE14534029O-ring
    VOE14534045O-ringVOE14534044O-ring
    SA9113-10800Hexagon nutSA9541-01010Retaining ring
    SA8230-26960RingVOE914503Retaining ring
    VOE14500006CoverSA8230-26360Pin
    SA8230-09750PinVOE14500005Pin
    VOE14500004PinSA8240-04510Screw
    VOE14535456O-ringVOE14554876Sealing kit
    VOE14534504Pin

    5.Product information:


    During installation, you must put some oil in the ring skeleton oil seal and the vertical axis line, if not vertical, oil seal lubricant seal lip will be drained from the shaft will cause the sealing lip excessive wear.


    Welcome to contact us, we can provide high quality and the best price!
