VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D

    Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers

    Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers
    • Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers
    • Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers
    • Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers
    • Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers
    • Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers
    • Buy cheap VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D from wholesalers

    VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : VOE14594333 14594333 Hydraulic Main Pump Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

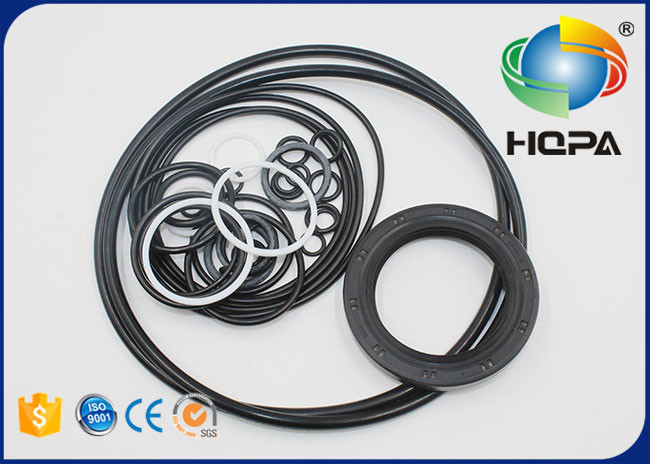

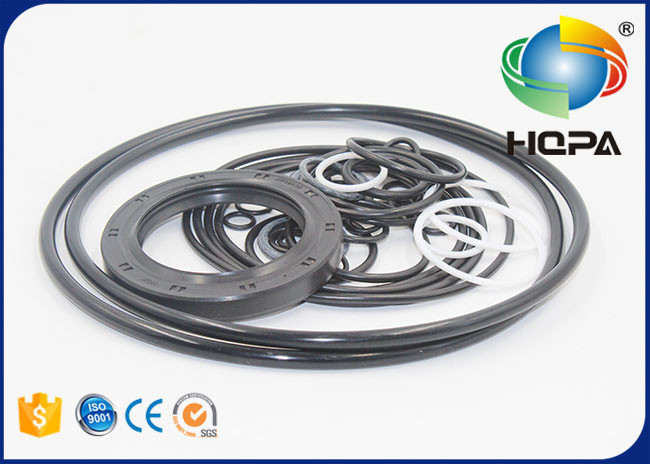

    VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D

    VOE14594333 14594333 Hydraulic Main Pump Seal Kit for Volvo EC480D
    1.Product Description:

    The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


    Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.

    And to maintain the power of the hydraulic main pump.



    2.General Product Information:


    VOE14594333 14594333 Hydraulic Main Pump Seal Kit for Volvo EC480D
    Brand NameHQPA/OEM
    Product NameVOE14594333 14594333 Hydraulic Main Pump Seal Kit for Volvo EC480D
    Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
    Part No.VOE14594333 14594333
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationVolvo EC460C, EC460CHR, EC480D, EC480DHR,
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: VOE14594333 14594333
    Group: Hydraulic Main Pump Seal Kit
    Fit for model: Volvo EC460C, EC460CHR, EC480D, EC480DHR,
    Contact: Mr. Sum Huang
    Whatsapp: +8618902494641
    www.excavatorsealkit.com

    .

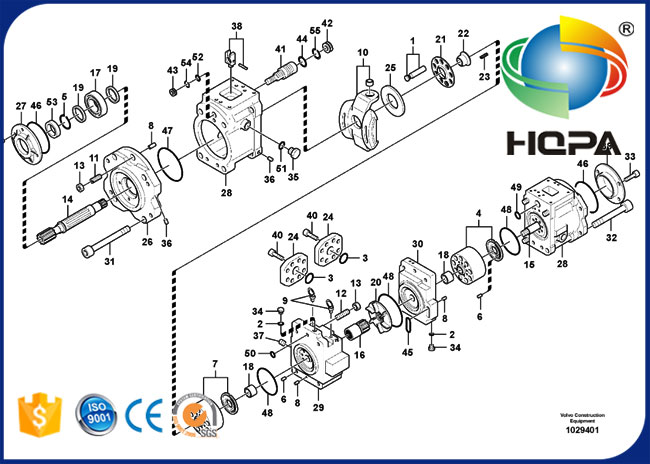

    4.Related parts


    VOE14594333 14594333 Hydraulic Main Pump Seal Kit for Volvo EC480D


    Part NoParts namePart NoParts name
    VOE14595548Hydraulic pumpVOE14594327Piston
    VOE14552768O-ringVOE14533615O-ring
    VOE14563795CylinderVOE914470Snap ring
    VOE14551525PinVOE14563796Cylinder
    SA7223-00660Spring pinVOE14880555Eye bolt
    VOE14502011PlateSA7223-00670Set screw
    SA7223-00680Set screwVOE979022Hexagon nut
    VOE14536032ShaftVOE14536031Shaft
    SA8230-09360Connecting rodSA7241-00421Roller bearing
    VOE14511981BearingSA8230-08850Spacer
    SA8230-09090Hydraulic unitVOE14536027Plate
    VOE14510070BushingSA7223-00180Spring
    VOE14512543PlateSA7223-00210Plate
    SA7223-00260SupportVOE14551796Cover
    VOE14594328CasingVOE14594329Cover
    VOE14615364CoverVOE14535197Screw
    SA7223-00390Hex. socket screwSA8230-09900Hex. socket screw
    VOE13967630Allen Hd ScrewVOE14550218Plug
    VOE14550185PlugVOE14560637Plug
    VOE14512382PlugVOE14536023Pin
    VOE14512544CoverVOE983919Hex. socket screw
    VOE14536033PistonSA7223-00420Stop
    SA7223-00430StopSA7223-00690O-ring
    VOE14535385O-ringVOE14533617O-ring
    VOE14615353O-ringVOE14533035O-ring
    VOE14533604O-ringVOE14533606O-ring
    VOE14550187O-ringSA7223-00700O-ring
    VOE14600699SealVOE14692341Ring
    SA7223-00650RingVOE14594333Seal
    VOE14623844GovernorVOE14623845Governor
    SA8230-25880Hex. socket screwVOE14511643Screw
    SA8230-25910Hex. socket screwSA8230-25920Bolt
    SA8230-25860BoltSA8230-25850Bolt
    VOE14550218PlugSA7223-00450Non-return valve
    VOE14533616O-ringVOE14533603O-ring
    VOE14533604O-ringVOE14533614O-ring
    VOE14533609O-ringVOE14533611O-ring
    VOE14534053O-ringVOE14533610O-ring
    VOE14533608O-ringVOE14529757O-ring
    VOE14552768O-ringVOE14533613O-ring
    VOE14533615O-ringVOE14533605O-ring
    VOE14533606O-ringVOE14587290Nut
    SA9113-10800Hexagon nutSA8240-03680Snap ring
    VOE914503Retaining ringSA8240-04510Screw
    VOE14560637PlugVOE14574269Valve
    VOE990547O-ringVOE990738O-ring
    VOE990546O-ringVOE14594939Seal

    5.Product information:


    In operation, the lubricant in the housing slightly oozing a little, in order to achieve the ideal state form a film at the sealing surface.


    Welcome to contact us, we can provide high quality and the best price!


    VOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480DVOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480DVOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480DVOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480DVOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480DVOE14594333 14594333 Hydraulic Main Pump Seal Kit For Volvo EC480D
