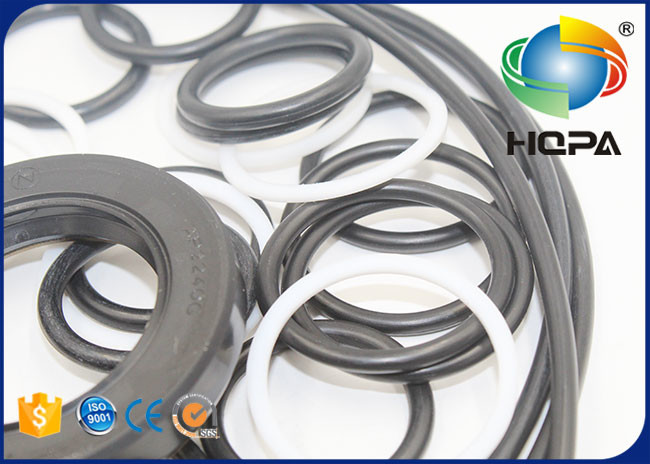

    SA8230-14370 SA823014370 Swing Motor Seal Kit For Volvo EC135B EC140B EC140C

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : SA8230-14370 SA823014370 Swing Motor Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    SA8230-14370 SA823014370 Swing Motor Seal Kit For Volvo EC135B EC140B EC140C

    SA8230-14370 SA823014370 Swing Motor Seal Kit for Volvo EC135B EC140B
    1.Product Description:

    Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power.

    Swing motor seal kits maintain the power of the swing motor.

    If the swing motor leaks oil, the boom cylinder will be powerless.



    2.General Product Information:


    SA8230-14370 SA823014370 Swing Motor Seal Kit for Volvo EC135B EC140B EC140C
    Brand NameHQPA/OEM
    Product NameSA8230-14370 SA823014370
    Swing Motor Seal Kit for Volvo EC135B EC140B EC140C
    Product styleSwing Motor Seal Kit / Motor Seal Kit
    Part No.SA8230-14370 SA823014370 SA 8230-14370 823014370
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationVolvo EW145B EC135B EC140 EC140B EC140C EC140D EC140E ECR145C ECR145D ECR145E EW130
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: SA8230-14370 SA823014370
    Group: Swing Motor Seal Kit
    Fit for model: Volvo EC135B EC140B EC140C
    Contact: Mr. Sum Huang
    Whatsapp: +8618902494641
    www.excavatorsealkit.com

    .

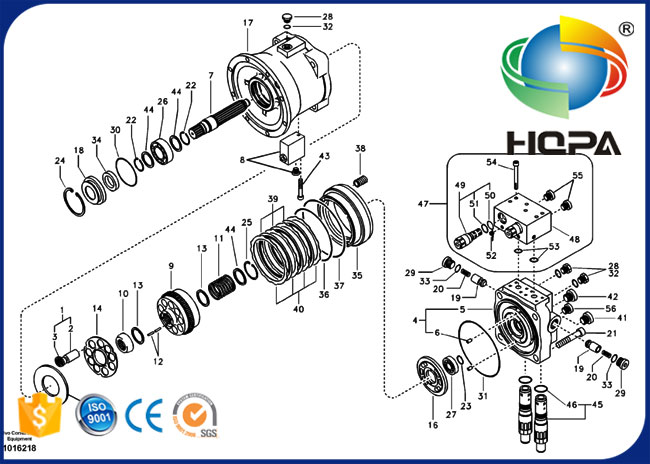

    4.Related parts


    SA8230-14370 SA823014370 Swing Motor Seal Kit for Volvo EC135B EC140B EC140C


    Part NoParts namePart NoParts name
    VOE14524188Swing motorVOE14612049Piston
    VOE14501617PistonVOE14501618Seat
    SA8230-30360CasingVOE14501619Casing
    VOE14501620PinSA8230-13670Shaft
    VOE14511642ValveVOE14562621Plug
    VOE983493O-ringVOE983503O-ring
    SA8230-13690CylinderSA8230-14100Retainer
    SA8230-14130SpringSA8230-26340Rod
    SA8230-14120SpacerSA8230-13920Plate
    SA8230-14080PlateSA8230-13930Valve plate
    SA8230-13600CasingSA8230-14090Cover
    SA8230-14170Control plungerSA8230-14180Spring
    SA8240-03530BoltSA8230-25970Ring
    SA8230-26960RingSA8230-25770Snap ring
    SA8230-25720RingSA8230-26570Roller bearing
    VOE14511641Roller bearingSA8230-25640Plug
    SA8230-25660PlugVOE990592O-ring
    SA8240-03361O-ringVOE983502O-ring
    VOE983509O-ringSA8230-26860Seal
    SA8230-13840Brake pistonSA8230-25510O-ring
    SA8230-25520O-ringSA8230-14140Spring
    SA8230-13780Friction plateSA8230-13730Separating plate
    SA8230-26930PlugSA8230-26920Plastic plug
    VOE14511643ScrewSA8230-14110Spacer
    SA8230-36550Relief valveVOE990582O-ring
    VOE14511644BlockVOE14511646Casing
    VOE14684415ValveVOE983509O-ring
    VOE14625240RingVOE14560637Plug
    VOE983511O-ringSA8230-25920Bolt
    SA8230-30430PlugVOE14529759Plug
    SA8230-14370SealVOE14507900Transmission
    VOE14541064Swing gearboxVOE14722461Draining valve
    SA1036-00120Thrust washerVOE14514384Pipe
    VOE14540597PipeSA7118-23200Planet carrier
    SA7118-23240PinSA7118-23250Bushing
    SA7147-00150Thrust washerSA9325-06012Spring pin
    SA7118-23270Roller bearingSA7118-23280Roller bearing
    VOE14528928ShaftSA7118-23310Collar
    SA7118-23330SealSA7118-23390Sun gear
    SA7118-23400Planet carrierSA7118-23430Pin
    SA7118-23440Needle bearingSA7118-23460Washer
    SA7147-00150Thrust washerSA9325-06012Spring pin
    VOE914462Snap ringSA7118-23490Gear
    SA7118-23520CollarSA7118-23530Shim
    SA7118-23540ShimSA7118-23550Shim
    SA7118-23560ShimSA7118-23570Shim
    VOE984358Hex. socket screwSA9324-21212Pin
    VOE949329GasketVOE990592O-ring
    VOE14588466GearVOE14514438Case
    VOE14526213Overhaul kit

    5. Related information:


    * Seal kits are made of specialized materials for the maximizing durability with wear resistance, properly heat treated body to produce optimum performance of the machine and life time seal and lubrication which were thoroughly checked by standard rule on each seal kit in order to ensure a perfect sealing. Thus, the perfect oil sealed lubrication is assured of life time service operation in terms of retaining the oil lubricant for the perfect operation between piston and cylinder.
