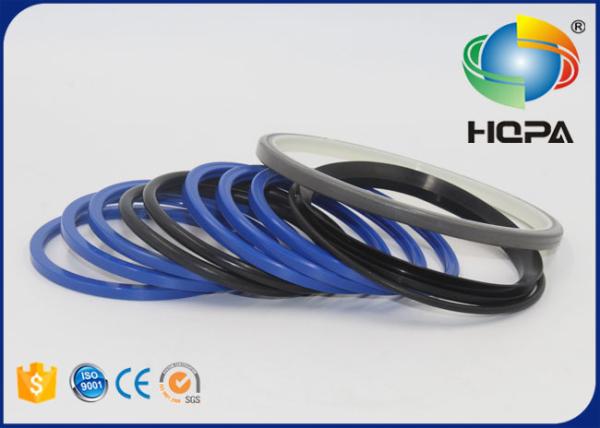

    703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit For Komatsu PC300-7 PC450-7

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit For Komatsu PC300-7 PC450-7

    703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit for Komatsu PC300-7 PC450-7
    1.Product Description:

    Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor.

    It has many other names, including rotary manifold, rotary union, center swivel, and center joint.

    It's an important part of the machine.

    If there is oil leak in the swivel joint, the travel motor will lose power.

    So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits.



    2.General Product Information:


    703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit for Komatsu PC300-7 PC450-7
    Brand NameHQPA/OEM
    Product Name703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit for Komatsu PC300-7 PC300-8 PC350-7 PC350-8 PC400-7 PC400-8 PC450-7 PC450-8
    Product styleSwivel Joint Seal Kit / Joint Seal Kit
    Part No.703-08-33620KT 703-08-33651KT 703-08-33620 703-08-33651 7030833620KT 7030833651KT 7030833620 7030833651 Swivel Joint Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC400LC PC410LC-5 PC410-5 PC300-5C PC300-5 PC300 PC300LC PC310LC-5 PC300LC-5 PC310-5 PC400 PC400-5 PC400-5C PC400LC-5 PC300NLC-5K PC300LC-5K PC300HD-5K PC300-5K PC400HD-5K PC300LC-5LC
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 703-08-33620KT 703-08-33651KT
    Group: Swivel Joint Seal Kit
    Fit for model: Komatsu PC400-7 PC400-7-M1 PC450LC-7-M1 PC450LC-7 PC450-7-M1 PC450-7 PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC400LC-7-M1 PC400LC-7 PC350-7 PC340NLC-7K PC340LC-7K PC450-7K PC380LC-7K PC450LC-7K PC300LC-7L PC300LL-7L PC300HD-7L PC400LC-7L


    4.Related parts


    703-08-33620KT 703-08-33651KT Swivel Joint Seal Kit for Komatsu PC300-7 PC450-7


    Part NoParts namePart NoParts name
    703-08-33620SWIVEL JOINT ASS'Y703-08-95620SEAL
    07000-15080O-RING703-13-98930PLUG
    703-09-98130SEAL703-08-94510RING
    04064-07525RING,SNAP703-08-93170COVER
    07000-12105O-RING01010-80835BOLT
    01643-30823WASHER707-01-XU792CYLINDER GROUP,(FINAL COATING)
    707-01-XU791CYLINDER GROUP,(FINAL COATING)707-01-0F702CYLINDER ASS'Y
    707-01-0F701CYLINDER ASS'Y707-13-16870CYLINDER
    707-76-10290BUSHING07145-00100SEAL,DUST
    07020-00000FITTING,GREASE707-58-11810ROD,PISTON
    707-58-10930ROD,PISTON707-76-10140BUSHING
    208-70-73510BUSHING208-70-73530SEAL,DUST
    707-27-16580HEAD,CYLINDER707-27-16950HEAD,CYLINDER
    707-56-11740SEAL,DUST707-56-10740SEAL,DUST
    07179-13126RING,SNAP07179-13114RING,SNAP
    707-52-90851BUSHING707-52-90781BUSHING
    707-75-11040RING,SNAP707-75-10160RING,SNAP
    707-51-11030PACKING,ROD707-51-10030PACKING,ROD
    707-51-11640RING,BUFFER707-51-10640RING,BUFFER
    707-35-91640RING,BACK-UP07000-15150O-RING
    01010-82085BOLT707-88-75310WASHER
    707-36-16580PISTON01310-01216SCREW
    707-44-16180RING,PISTON707-39-16120RING,WEAR
    707-44-16910RING07001-05100RING,BACK-UP
    07000-15100O-RING707-86-12580TUBE
    707-86-12570TUBE07372-21060BOLT
    01643-51032WASHER07000-13035O-RING
    707-88-25390BRACKET07372-21240BOLT
    01010-81245BOLT01643-31232WASHER
    707-88-10150CLAMP01643-51232WASHER
    707-88-33040CAP07371-31049FLANGE,SPLIT
    07372-21035BOLT707-99-72240SERVICE KIT
    707-99-66240SERVICE KIT706-7K-01170MOTOR ASS'Y,(SEE FIG. Y1640-01A0)
    706-7K-01040MOTOR ASS'Y706-7K-03140MOTOR SUB ASS'Y,(SEE FIG. Y1640-01A0)
    706-7K-03030MOTOR SUB ASS'Y706-7K-41610SHAFT
    706-77-43880BEARING706-77-43890BEARING
    706-7K-41810SPACER706-77-42051SPRING
    706-77-42041SEAT706-77-42890BEARING
    706-77-05010SPACER KIT04064-06525RING,SNAP
    706-8J-41420SEAL,OIL706-7K-41650SEAL
    706-7K-41920SPACER04065-07525RING
    706-7K-41210BLOCK,CYLINDER706-7K-41710PLATE,VALVE
    708-18-13230PIN706-7K-41120SHAFT,CENTER
    706-77-42130RING,CENTER706-7K-41140SPRING
    706-7K-05010RETAINER KIT706-7K-41160PISTON SUB ASS'Y
    706-7K-91340PLATE706-7K-91350DISC
    706-7K-91111PISTON,BRAKE07000-B5230O-RING
    07000-15230O-RING706-86-90290O-RING
    708-8H-15220O-RING706-7K-91360SPRING

    5. Fixed on below models:


    PC400-7PC400-7-M1PC450LC-7-M1PC450LC-7PC450-7-M1
    PC450-7PC300-7-AAPC300LC-7PC300LC-7-BAPC300-7
    PC350LC-7PC350-7-AAPC350LC-7-BAPC400LC-7-M1PC400LC-7
    PC350-7PC340NLC-7KPC340LC-7KPC450-7KPC380LC-7K
    PC450LC-7KPC300LC-7LPC300LL-7LPC300HD-7LPC400LC-7L
    PC400-7(-50)PC550LC-8PC300-8PC400-7E0PC400-8
    PC450LC-7E0PC450-8PC450-7E0PC300-7E0PC350-7E0
    PC300LC-7E0PC300LC-8PC350LC-8PC350LC-7E0PC400LC-8
    PC400LC-7E0PC450LC-8PC350-8PC490-10PC360LC-10
    PC400LC-8RPC450-8RPC360NLC-10PC350NLC-8PC490LC-10
    PC450LCHD-8PC400-8RPC450LC-8RPC350HD-8PC300HD-8
    PC300HD-7E0PC390LL-10PC390LC-10PC360-8M0PC400LCSE-8R
    PC300-8M0HB335LC-1HB335-1HB365-1HB365LC-1
    PC300LC-8M0PC360LC-11PC360NLC-11PC350LC-8M0PC350-8M0

    Welcome to contact us, we can provide high quality and the best price!
