    703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit For Komatsu PC200-7 PC240-8

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

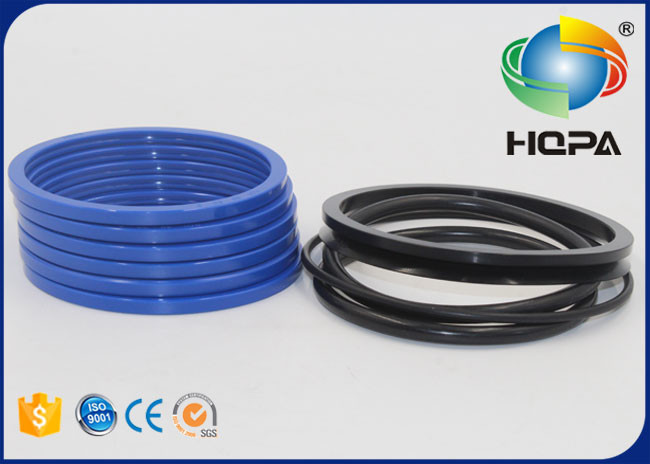

    703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit For Komatsu PC200-7 PC240-8

    703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit for Komatsu PC200-7 PC240-8
    1.Product Description:

    Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor.

    It has many other names, including rotary manifold, rotary union, center swivel, and center joint.

    It's an important part of the machine.

    If there is oil leak in the swivel joint, the travel motor will lose power.

    So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits.



    2.General Product Information:


    703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit for Komatsu PC200-7 PC240-8
    Brand NameHQPA/OEM
    Product Name703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit for Komatsu PC200-7 PC200-8 PC240-8
    Product styleSwivel Joint Seal Kit / Joint Seal Kit
    Part No.703-08-33610KT 703-08-33631KT 703-08-33610 703-08-33631 7030833610KT 7030833631KT 7030833610 7030833631 Swivel Joint Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC160LC-7E0 PC200-8 PC200-7 PC200LC-7 PC200LC-8 PC220-7 PC220-8 PC220LC-8 PC220LC-7 PC228USLC-3E0 PC228US-3E0 PC270-8 PC270-7 PC270LC-8-W1 PC270LC-8N1-W1 PC240NLC-8K PC240LC-8K PC228USLC-8 PC190NLC-8 PC190LC-8 PC160LC-8 PC180NLC-7-E0 PC160LC-7-E0 PC180LC-7-E0 PC230NHD-8K PC210-8K PC210LC-8K PC210NLC-8K PC290NLC-8K PC290LC-8K PC160LC-7
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 703-08-33610KT 703-08-33631KT
    Group: Swivel Joint Seal Kit
    Fit for model: Komatsu PC160LC-7E0 PC200-8 PC200-7 PC200LC-7 PC200LC-8 PC220-7 PC220-8 PC220LC-8 PC220LC-7 PC228USLC-3E0 PC228US-3E0 PC270-8 PC270-7 PC270LC-8-W1 PC270LC-8N1-W1 PC240NLC-8K PC240LC-8K PC228USLC-8 PC190NLC-8 PC190LC-8 PC160LC-8 PC180NLC-7-E0 PC160LC-7-E0 PC180LC-7-E0 PC230NHD-8K PC210-8K PC210LC-8K PC210NLC-8K PC290NLC-8K PC290LC-8K PC160LC-7


    4.Related parts


    703-08-33610KT 703-08-33631KT Swivel Joint Seal Kit for Komatsu PC200-7 PC240-8


    Part NoParts namePart NoParts name
    703-08-33631Swivel Joint Assembly703-08-95620Seal, Oil
    07000-15080O-ring703-08-98930Plug
    04064-07525Ring, Snap703-08-94510Ring
    703-08-93170Cover07000-12105O-ring
    01010-80835Bolt01643-30823Washer
    703-08-93771Cover703-08-95770Seal, Dust
    22U-26-21280Ring07042-00312Plug, Taper
    206-26-73310Case206-26-73150Bearing
    206-26-73160Bearing206-26-73130Shaft
    206-26-73140Spacer07000-15100O-ring
    20Y-26-22420Seal206-26-73120Cover
    01010-81040Bolt01643-31032Washer
    07000-15310O-ring206-26-71480Carrier
    206-26-71440Gear22U-26-21320Bearing
    206-26-71520Washer, Thrust206-26-71510Pin
    20Y-26-21330Pin20Y-26-21240Plate
    112-32-11211Bolt206-26-71452Gear
    20K-22-11190O-ring01010-81440Bolt
    01643-31445Washer206-26-71430Gear
    04260-01270Ball206-26-71471Carrier
    206-26-71420Gear20Y-27-22210Bearing
    22U-26-21230Washer, Thrust206-26-71210Pin
    04064-03515Ring206-26-71350Holder
    206-26-71410Gear206-26-71341Plate
    22U-26-21280Ring07042-00312Plug, Taper
    206-26-73310Case206-26-73150Bearing
    206-26-73160Bearing206-26-73130Shaft
    206-26-73140Spacer07000-15100O-ring
    20Y-26-22420Seal206-26-73120Cover
    01010-81040Bolt01643-31032Washer
    07000-15310O-ring206-26-71480Carrier
    206-26-71440Gear22U-26-21320Bearing
    206-26-71520Washer, Thrust206-26-71510Pin
    20Y-26-21330Pin20Y-26-21240Plate
    112-32-11211Bolt206-26-71452Gear
    20K-22-11190O-ring01010-81440Bolt
    01643-31445Washer206-26-71430Gear
    04260-01270Ball206-26-71471Carrier
    206-26-71420Gear20Y-27-22210Bearing
    22U-26-21230Washer, Thrust206-26-71210Pin
    04064-03515Ring206-26-71350Holder
    206-26-71410Gear206-26-71341Plate

    Welcome to contact us, we can provide high quality and the best price!
