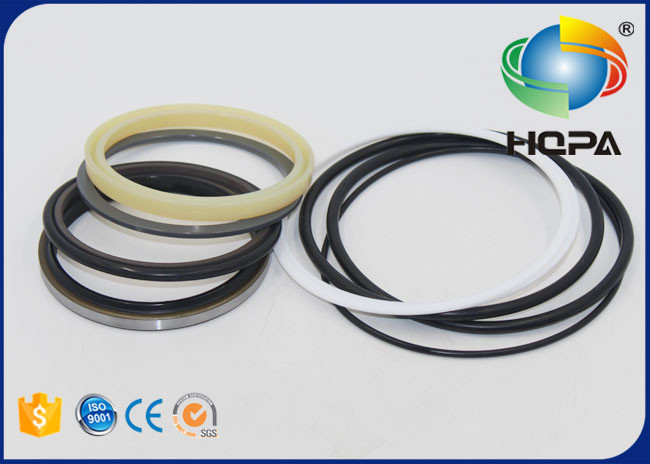

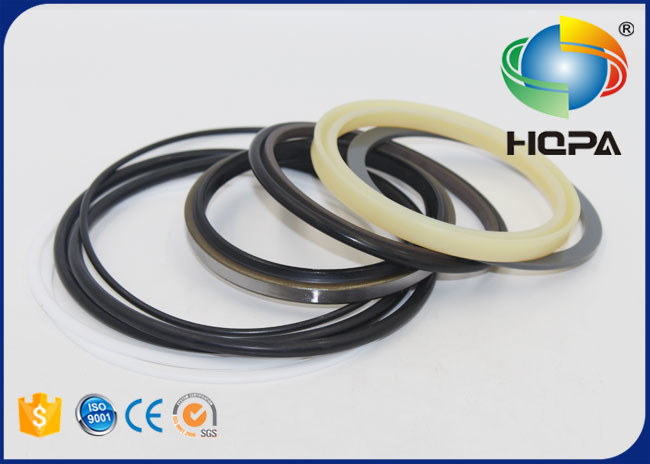

2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

    Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers

    Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers
    • Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers
    • Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers
    • Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers
    • Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers
    • Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers
    • Buy cheap 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A from wholesalers

    2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 2438U587R100 2438U587R120 Piston Rod Seal Repair Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

    2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A

    1.Product Description:


    Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.



    2.General Product Information:


    2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A
    Brand NameHQPA/OEM
    Product Name2438U587R100 2438U587R110 2438U587R120 Piston Rod Seal Repair Kit for Kobelco K909-A K909A
    Product stylePiston Rod Seal Repair Kit / Rod Seal Repair Kit
    Part No.2438U587R100 2438U587R110 2438U587R120
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKobelco K909-A K909A
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 2438U587R100 2438U587R110 2438U587R120
    Group: Piston Rod Seal Repair Kit
    Fit for model: Kobelco K909-A K909A


    4.Related parts


    2438U587R100 2438U587R120 Piston Rod Seal Repair Kit For Kobelco K909-A K909A


    Part NoParts namePart NoParts name
    2438U587F3CYLINDER2438U587F10CYLINDER ASSY, BOOM CONSISTS OF THE FOLLOWING PARTS
    2438U587S2ROD, F3 ONLY2438U568S31DUST CAP
    2438U587S6SEAL, DUST2438U587S7PISTON
    ZD12G06000O-RING,59.40mm ID x 65.60mm OD x 3.10mmZD85G06000BACK-UP RING
    R45P0049D11SEALR45P0051D24O-RING
    2438U282S9PISTON-RING WEAR2438U308S44NUT
    2438U308S45LOCKING RING2438U587S15PLATE
    2438U552S14SPRING2438U587S17COVER ROD
    ZS23C14055SCREW,Hex Socket Head, M14 x 55mm2438U587S19TUBE
    2438U322S33PACKINGZD12G14000O-RING,139.40mm ID x 145.60mm OD x 3.10mm
    R45P0051D21O-RINGR45P0050D10SEAL
    2438U552S18RING, BACK-UPZD12P13000O-RING
    2438U308S15BUSHING2438U308S16CLIP
    2438U282S23SNAP RING2438U587S30BUSHING
    2438U587S31BUSHING2438U587S32ROD
    2438U568S36SEAL2438U587R110REPAIR KIT
    2438U587R120REPAIR KIT2441U474F1PUMP, HYDR ASSY, CONSISTS OF THE FOLLOWING PARTS
    2441U474F2PUMP, HYDR ASSY, CONSISTS OF THE FOLLOWING PARTS2441U474F3PUMP, HYDR ASSY, CONSISTS OF THE FOLLOWING PARTS
    2441U474F4HYDRAULIC PUMP2441U474S11PISTON
    2441U474S14CYLINDER2441U474S18PLATE
    2441U474S37REPAIR KIT2436U971F1CONTROL VALVE
    2441U474S83SLEEVE ASSY2441U474S84GUIDE, SPRING
    2441U474S111SHAFT2441U474S123BEARING
    2441U474S124NEEDLE BEARING2441U474S126SHIM
    2441U474S127SPACER2441U474S157SPRING
    2441U474S158SHIM2441U474S261COVER, FRONT
    2441U474S271BELT CASING, F1 - F3 ONLY2441U474S272CASING, F4 ONLY
    2441U474S273RETAINER2441U474S274RIGID TUBE
    2441U474S275SHEAT SEAT, F1 ONLY2441U474S276STOP
    2441U474S279STOPPER, F1 ONLY2441U474S280SCREW
    2441U474S312COVER, VALVE2441U474S315RING, GUIDE
    ZS23C06050CAPSCREW,Hex Socket Head, M6 x 50mmZS23C06030SCREW,Hex Socket Head, M6 x 30mm
    ZS23C10025SCREW,Hex Socket Head, M10 x 25mmZS23C20050SCREW,Hex Socket Head, M20 x 50mm
    ZS23C20045CAP,Hex Socket Head, M20 x 45mmZS23C12035SCREW,Hex Socket Head, M12 x 35mm
    2441U413S474PLUG2436U749S253PLUG
    2453U193S474PLUG2441U474S486PLUG
    2441U474S490PLUG2436U483S251PLUG
    2441U474S531LEVER2441U474S532PISTON
    2441U474S534STOPPER2441U474S535STOPPER
    2441U474S543RING2441U474S544BOLT
    2441U474S545PIN2441U474S551COVER, F1 ONLY
    2441U474S552COVER, F2 - F4 ONLY2441U474S572COVER
    2441U474S615LEVER2441U436S617PIN
    2441U436S620PIN2441U474S671CASE, PISTON
    2441U436S672COVER2441U474S673SPRING, F2 & F3 ONLY
    2441U474S674SPRING, F2 & F4 ONLY2441U474S675PISTON
    2441U474S676SPRING F1 - F3 ONLY2441U474S677RING
    2441U474S678SPRING F1 & F3 ONLY2441U474S686RING
    2441U474S690WASHER2441U474S691CASE, SPRING
    ZD12G30000O-RING,299.30mm ID x 310.70mm OD x 5.70mmZD12G04000O-RING,39.40mm ID x 45.60mm OD x 3.10mm
    ZD12P06000O-RINGZD12P08000O-RING
    ZD12P10000O-RINGZD12P14000O-RING
    ZD12P01600O-RINGZD12P02000O-RING,2.4mm Thk x 19.8mm ID, 90 Duro
    ZD12P02400O-RINGZD12P01200O-RING
    2441U474S743O-RING2441U474S745O-RING
    ZD12P00300O-RINGZD12P02100O-RING,2.4mm Thk x 20.8mm ID, 90 Duro
    2441U474S774OIL SEAL2441U474S793WASHER, SEALING
    ZN11C08007NUTZN12C20016NUT
    ZR16X04500RING2441U474S888PIN
    2441U436S924SCREW2441U436S926SET OF SCREWS
    2441U474S930SCREW2441U474S964BALL


    5. Related:


    All the picture is just for your reference.

    We can provide service according to the client's requirements!

    We always promise to offer excellent products as well as satisfactory service to our clients all over the world.

    If you have any problems with details please contact us, we can supply different pressure spare parts with different models as you like.


    Welcome to contact us, we can provide high quality and the best price!
