    723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit For PC230-6

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit For PC230-6

    723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit for PC230-6
    1.Product Description:

    The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track.
    The power comes from the hydraulic system.
    When you find the travel lose power, there might be because the oil leakage caused to the travel motor.
    In other words, the travel motor seal kit prevents oil from leaking and maintains power.



    2.General Product Information:


    723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit for PC230-6
    Brand NameHQPA/OEM
    Product Name723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit for Komatsu PC200-6 PC230-6
    Product styleMain Control Valve Seal Kit / Control Valve Seal Kit
    Part No.723-47-10200KT 723-47-10201KT 723-47-10600KT 723-47-10200 723-47-10201 723-47-10600 7234710200KT 7234710201KT 7234710600KT 7234710200 7234710201 7234710600 Hydraulic Main Control Valve Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC200-6 PC200-6S PC200LC-6 PC200LC-6S PC210-6 PC210LC-6G PC210-6G PC210LC-6 PC220-6 PC220LC-6 PC230LC-6 PC230-6
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 723-47-10200 723-47-10201 723-47-10600
    Group: Main Control Valve Seal Kit
    Fit for model: Komatsu PC200-6 PC200-6S PC200LC-6 PC200LC-6S PC210-6 PC210LC-6G PC210-6G PC210LC-6 PC220-6 PC220LC-6 PC230LC-6 PC230-6

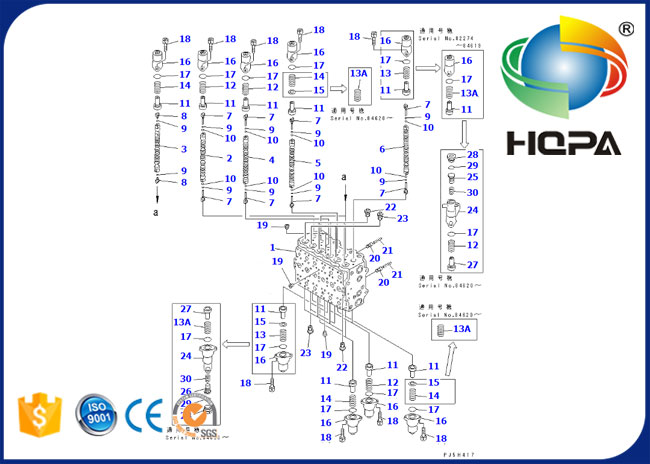

    4.Related spare parts:


    723-47-10200 723-47-10201 723-47-10600 Main Control Valve Seal Kit for PC230-6


    Part NoParts namePart NoParts name
    723-47-10201VALVE ASS'Y,1A SV LESS723-47-10200VALVE ASS'Y,1A SV LESS
    207-62-33920ELBOW07002-01423O-RING
    21T-62-29960TEE20Y-62-23541ELBOW
    20Y-60-22260VALVE ASS'Y20Y-60-22270POPPET
    701-20-61230SPRING20Y-60-22230NIPPLE
    07002-11423O-RING20Y-62-22160ADAPTER
    723-47-10600VALVE ASS'Y723-47-10201VALVE ASS'Y
    723-47-10200VALVE ASS'Y723-40-70100VALVE ASS'Y
    723-40-80102VALVE ASS'Y723-40-80101VALVE ASS'Y
    723-40-80100VALVE ASS'Y723-40-66100VALVE ASS'Y
    723-40-66200VALVE ASS'Y07000-12012O-RING
    07000-12015O-RING07000-12018O-RING
    07000-12021O-RING07000-13025O-RING
    07000-13028O-RING07000-13032O-RING
    07000-03040O-RING01010-61490BOLT
    01010-61460BOLT01643-31445WASHER
    01010-81060BOLT01643-31032WASHER
    01252-61050BOLT01643-51032WASHER
    01011-61455BOLT723-46-15130PLUG
    07002-10823O-RING708-7T-16460BALL
    723-46-15120RETAINER723-46-14110SPRING
    723-46-15111CASE07430-71380O-RING
    01252-30820BOLT07000-11009O-RING
    07000-12021O-RING07000-12015O-RING
    07000-12018O-RING07000-13032O-RING
    07000-03040O-RING723-46-41110VALVE
    723-40-66300VALVE ASS'Y01252-60845BOLT
    01643-50823WASHER723-46-40500VALVE ASS'Y
    723-46-40100VALVE ASS'Y709-74-91510PLUG
    709-25-11390O-RING07001-01009RING
    700-93-11320O-RING723-46-41950RING
    07002-13634O-RING723-46-40500VALVE ASS'Y
    723-46-15130PLUG723-46-15140PLUG
    07002-10823O-RING708-7T-16460BALL
    723-46-15120RETAINER723-46-14110SPRING
    723-46-14161SPRING723-46-14170SPRING
    723-46-14131SPRING723-46-15250SHIM
    723-46-15110CASE07430-71380O-RING
    01252-30820BOLT723-46-15150VALVE
    723-46-14150SPRING723-46-41110VALVE
    723-46-41120VALVE723-46-15410CASE
    723-46-15530PISTON723-46-15520PISTON
    723-46-15420RETAINER723-46-15450PLUG
    07002-03034O-RING723-46-15440SPRING
    723-47-10600VALVE ASS'Y723-47-10201VALVE ASS'Y
    723-47-10200VALVE ASS'Y723-40-70100VALVE ASS'Y
    723-40-71160SPRING723-40-71140PLUG
    723-40-71150PLATE723-40-71170SPRING
    07040-11812PLUG07002-11823O-RING
    07002-13634O-RING07000-13032O-RING
    01252-30830BOLT723-40-80102VALVE ASS'Y
    723-40-80101VALVE ASS'Y723-40-80100VALVE ASS'Y
    723-46-15150VALVE723-46-14150SPRING
    723-46-15180PLUG07002-11823O-RING
    723-46-15190VALVE723-46-14140SPRING
    708-8E-16160PLUG07002-11023O-RING
    709-74-91860PLUG07002-12434O-RING
    723-46-40100VALVE ASS'Y723-46-46101VALVE ASS'Y
    723-46-40300VALVE ASS'Y723-46-40200VALVE ASS'Y
    723-46-40400VALVE ASS'Y723-46-41100VALVE ASS'Y
    723-46-45100VALVE ASS'Y723-46-15100PLUG ASS'Y
    723-40-50100VALVE ASS'Y,RELIEF723-40-50200VALVE ASS'Y,RELIEF
    723-40-56100VALVE ASS'Y,UNLOAD723-40-60100VALVE ASS'Y
    709-70-74302VALVE ASS'Y,SUCTION AND SAFETY709-70-74203VALVE ASS'Y,SUCTION AND SAFETY
    723-40-85100VALVE ASS'Y,SUCTION709-20-81201VALVE ASS'Y,SUCTION
    700-93-11320O-RING723-46-41950RING
    07002-13634O-RING723-46-40300VALVE ASS'Y
    723-46-40200VALVE ASS'Y723-46-40400VALVE ASS'Y
    723-46-41100VALVE ASS'Y723-46-15100PLUG ASS'Y
    07002-11423O-RING07000-11007O-RING
    07001-01007RING,BACK-UP723-46-46101VALVE ASS'Y
    723-46-45100VALVE ASS'Y07000-12014O-RING
    723-40-56350RING07000-12016O-RING
    723-60-22230RING,BACK-UP07002-12434O-RING
    723-40-60100VALVE ASS'Y07000-12020O-RING
    07001-02020RING709-25-11390O-RING
    700-80-61260O-RING700-80-61430RING
    07000-12021O-RING07001-02021RING,BACK-UP
    07002-13034O-RING07000-03032O-RING
    723-40-50200VALVE ASS'Y,RELIEF700-22-11410O-RING
    700-80-64220RING07002-02434O-RING


    5. Related models:


    PC200-6PC200-6SPC200LC-6PC200LC-6SPC210-6
    PC210LC-6GPC210-6GPC210LC-6PC220-6PC220LC-6
    PC230LC-6PC230-6PC340NLC-6KPC27MR-2PC300LC-3
    D60A-6D31E-20PC130-5KPC14R-2PC07-2
    PC290LC-6KPC160LC-7PC340NLC-7KPC600-8PC160-6K
    D75A-1PW170ES-6KPC220-6PC300LC-7PC3000-1E
    PC10N-7PC308USLC-3E0PC128UU-2PC10MR-1-BPC650LC-7-M1
    D85EX-15RPC200LC-6ZPC220-5PC45-1PC55MR-3
    D65A-11DPC2000-8PC200SC-7-M1PC300LC-7E0PC800-8E0
    PC30MR-3(JPN)PC120-5PC450LCD-7KPC200-8PC50UU-2
    PC10UU-3PC220LC-7LPC07-1D61EX-15E0PC210LC-7K
    D21A-8TPC200-2DBD041-1PC210LC-10PC58UU-3
    PC200LC-7PC120SC-6PC200SC-6D21P-6PC400-5
    PC210-7-CAD39PX-22PC380UU-3PC75-1D61EX-12
    PW200-7KPC228US-3E0PC35MR-1D20QG-6PC45MR-3


    Welcome to contact us, we can provide high quality and the best price!
