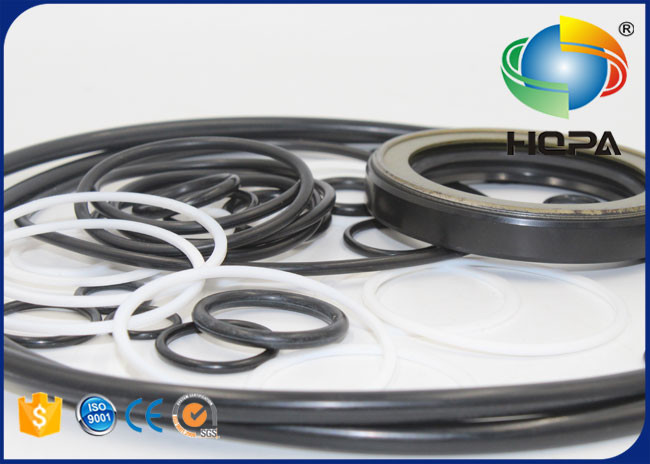

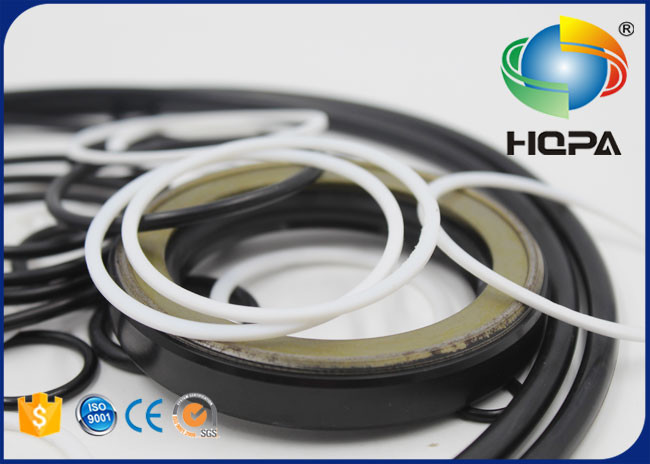

708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7

    Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers

    Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers
    • Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers
    • Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers
    • Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers
    • Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers
    • Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers
    • Buy cheap 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7 from wholesalers

    708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit For Komatsu PC300-7

    708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit for Komatsu PC300-7
    1.Product Description:

    The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


    Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.



    2.General Product Information:


    708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit for Komatsu PC300-7
    Brand NameHQPA/OEM
    Product Name708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit for Komatsu PC300-7
    Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
    Part No.708-2G-00024KT 708-2G-00024 7082G00024KT 7082G00024 Hydraulic Pump Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC360-7 PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7 PC300LC-7L PC300HD-7L
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 708-2G-00024KT 708-2G-00024
    Group: Hydraulic Main Pump Seal Kit
    Fit for model: Komatsu PC360-7 PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7 PC300LC-7L PC300HD-7L


    4.Related parts


    708-2G-00024KT 708-2G-00024 Hydraulic Main Pump Seal Kit for Komatsu PC300-7


    Part NoParts namePart NoParts name
    708-2G-00022PUMP ASS'Y708-2G-00024PUMP ASS'Y
    708-2G-01021PUMP SUB ASS'Y708-2G-04115CASE ASS'Y, FRONT
    708-2G-04112CASE ASS'Y, FRONT708-8E-16150PLUG
    07002-61023O-RING708-2L-23920O-RING
    07040-12414PLUG07002-62434O-RING
    708-1W-28910O-RING708-2L-25650ORIFICE
    04530-01222BOLT,EYE07044-12412PLUG
    07002-32434O-RING708-2L-35311SLEEVE
    708-2L-24680SEAL708-2G-15412SPOOL
    708-2L-28540PISTON708-2L-35360SLEEVE
    708-2L-35260SLEEVE708-2G-15420SEAT
    708-2L-35331SEAT708-2L-35410SPRING
    708-2L-35341SEAT708-2L-35351PLUG
    07000-B1009O-RING07001-01009RING, BACK-UP
    01583-11408NUT07002-62434O-RING
    708-1W-28910O-RING708-2L-35530PLUG
    07002-61023O-RING708-2L-23920O-RING
    702-21-55600PILOT VALVE702-21-55901PILOT VALVE
    01252-60635BOLT20Y-62-22790BAND, RED
    702-21-55701PILOT VALVE702-21-55700PILOT VALVE
    702-16-55260BOLT20Y-62-22830BAND, WHITE
    702-21-55400VALVE ASS'Y702-21-55920PLUG
    702-21-55930PISTON702-21-55940SPRING
    702-21-55951BLOCK702-21-55950BLOCK
    07002-12034O-RING07000-11008O-RING
    722-12-18240O-RING01252-60530BOLT
    708-2G-03420PLUG SUB ASS'Y708-2G-15670PLUG
    07000-B1009PLUG07000-B1008O-RING
    07001-01008RING07000-B1007O-RING
    07001-01007RING,BACK-UP07002-61423O-RING
    708-2L-23950O-RING01643-51232WASHER
    01010-81220BOLT08193-21012CLIP
    708-2G-12151BEARING07000-A5185O-RING
    04020--01434PIN07000-B2012O-RING
    01010-61655BOLT01643-51645WASHER
    07000-B2014O-RING708-2L-25480FILTER
    708-8E-16150PLUG07002-61023O-RING
    708-2L-23920O-RING708-2G-12111SHAFT
    708-2G-12251BEARING708-2G-05010WASHER KIT
    708-1F-12270RING, SNAP708-1F-12281SEAL OIL
    708-8H-32160SPACER04065-07825RING, SNAP
    708-2G-04141CYLINDER BLOCK ASS'Y708-18-13230PIN
    04065-05520RING, SNAP708-2G-13131SEAT
    708-2G-13152SPRING708-2G-13141SEAT
    708-2G-13510GUIDE, RETAINER708-2H-23360PIN
    708-2G-13341RETAINER, SHOE708-2G-13311PISTON SUB ASS'Y
    708-2G-04161CRADLE SUB ASS'Y04020-01434PIN
    07000-B1009O-RING01252-61230BOLT
    708-2G-14120SLIDER708-2G-03510VALVE ASS'Y PC
    708-2G-03520PISTON ASS'Y SERVO708-2G- 15320SEAL
    708-2G-15221PLUG708-2L-35760BALL
    708-2L-35770PLUG708-2L-35690SEAL
    708-2L-35170PIN708-2G-15211SPOOL
    708-2G-15290RETAINER708-2G-15140SEAT
    708-2G-15270SPRING708-2G-15280SPRING
    708-2G-15151SEAT708-2G-15150SEAT
    708- 2G-15250SPRING708-2G-14340SCREW
    07000-B3038O-RING708-2G-15230RING BACK UP
    708-2G-15260SEAL708-2G-15240PLUG
    07000-B2012O-RING07000-B2050O-RING
    708-2G-15310RING708-2G-14190COVER
    01580-10806NUT708-2L-35540NUT
    708-2G-15330RING ,WIRE01252-61645BOLT
    708-2G-14310SCREW07000-B3038O-RING
    708-2G-15230RING BACK UP708-2L-35540NUT
    708-2G-14170COVER07000-B2050O-RING
    708-2G-15310RING01252-61645BOLT
    708-2G-14120SLIDER708-2G-03510VALVE ASS'Y
    708-2G-03520PISTON ASS'Y SERVO708-2G-15320SEAL
    708-2G-15221PLUG708-2L-35760BALL
    708-2L-35770PLUG708-2L-35690SEAL
    708-2L-35170PIN708-2G-15211SPOOL
    708-2G-15290RETAINER708-2G-15140SEAT
    708-2G-15270SPRING708-2G-15280SPRING
    708-2G-15151SEAT708-2G-15150SEAT
    708-2G-15250SPRING708-2G-14340SCREW
    07000-B3038O-RING708-2G-15230RING BACK UP
    708-2G-15260SEAL708-2G-15240PLUG
    07000-B2012O-RING07000-B2050O-RING
    708-2G-15310RING BACK UP708-2G-14190COVER
    01580-10806NUT708-2L-35540NUT

    5. Related models:


    PC360-7PC300-7-AAPC300LC-7PC300LC-7-BAPC300-7
    PC350LC-7PC350-7-AAPC350LC-7-BAPC350-7PC300LC-7L
    PC300HD-7LD65EX-15PC50FR-1PC4000-6EPC95R-2 USA
    PC220LC-3PC230NHD-7KPC10-5PC30MR-2PC95-1
    PC128US-2-APC150-3PC60-7EPC200LC-6D45A-1
    D85E-18PC1100SP-6PC09FR-1D65PX-15E0PC210LC-7-DA
    PC100-6SPC340LCD-7KD65A-8WD600-1HD155A-2
    PC130-5KPW210-1PC600-6KJ-KUPC200SC-6D60A-8
    PC650LC-5PC220-1D58P-1CPC130-6E0-T2PC200LL-7L
    DDM053-1APC400LC-7-M1D85EX-15E0PC400LC-8PC600-8
    PW130-6KPC35MR-1PC450LC-7PC180LC-5KPC230NHD-8K
    PC100-5PC128UU-1PC160LC-8PC340NLC-6PC490-10

    Welcome to contact us, we can provide high quality and the best price!
