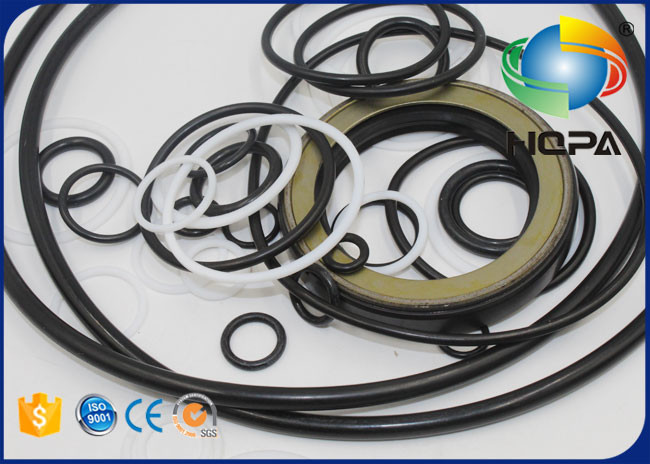

708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

    Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers

    Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers
    • Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers
    • Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers
    • Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers
    • Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers
    • Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers
    • Buy cheap 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7 from wholesalers

    708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

    708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
    1.Product Description:

    The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


    Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.



    2.General Product Information:


    708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
    Brand NameHQPA/OEM
    Product Name708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
    Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
    Part No.708-2H-00450KT 708-2H-00022KT 708-2H-00450 708-2H-00022 7082H00450KT 7082H00022KT 7082H00450 7082H00022 Hydraulic Pump Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 708-2H-00450 708-2H-00022
    Group: Hydraulic Main Pump Seal Kit
    Fit for model: Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7

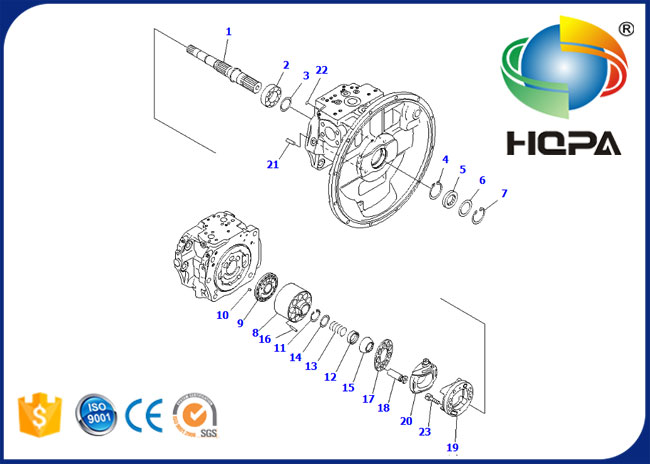

    4.Related parts


    708-2H-00450 708-2H-00022 Hydraulic Main Pump Seal Kit for Komatsu PC350-7


    Part NoParts namePart NoParts name
    708-2H-00022Pump Assembly708-2H-01450Pump Subassembly
    708-2H-04670Case Assembly,Front708-8E-16150Plug
    07002-61023O-ring07000-B2012O-ring
    04530-11222Bolt, Eye07044-12412Plug
    07002-62434O-ring07040-12414Plug
    708-2H-21860Plate708-2H-04850Gear Kit
    708-2H-32311Gear, Bevel708-2H-32341Pinion
    708-2H-32320Bushing708-2H-32330Impeller
    01010-61220Bolt708-2H-32350Washer
    708-2H-32360Shaft708-2H-32370Cover
    07000-A2105O-ring708-2H-05120Shim Kit
    01010-81235Bolt01643-31232Washer
    708-2L-35311Sleeve708-2L-24680Seal
    708-2G-15412Spool708-2L-28540Piston
    708-2L-35360Sleeve708-2L-35331Seat
    708-2L-35410Spring708-2L-35341Seat
    708-2L-35351Plug07000-B1009O-ring
    07001-01009Ring, Back-up01583-11408Nut
    07002-62434O-ring702-21-57600Valve, Pilot
    01252-60635Bolt, Hexagon Socket Head20Y-62-22790Band, Red
    702-21-57500Valve, Pilot702-16-55260Bolt
    20Y-62-22830Band, White702-21-55400Valve Assembly
    702-21-55920Plug702-21-55930Piston
    702-21-55940Spring702-21-55951Block
    07002-12034O-ring07000-11008O-ring
    722-12-18240O-ring01252-60530Bolt, Hexagon Socket Head
    708-2H-15531Plug07000-B1008O-ring
    07001-01008Ring, Back-up07002-61423O-ring
    01643-51232Washer01010-81220Bolt
    08193-21012Clip708-2H-12430Bearing
    07000-A5190O-ring04020-01434Pin, Dowel
    708-1L-29340Orifice01010-61860Bolt
    01643-31845Washer708-2L-25480Filter
    708-8E-16150Plug07002-61023O-ring
    708-2H-32110Shaft708-1H-22150Bearing
    708-17-05010Washer Kit708-17-12780Ring, Snap, Snap
    708-2H-22570Seal, Oil708-27-22811Seal, Oil
    708-2H-22160Spacer04065-08225Ring, Snap
    708-2H-04750Cylinder Block Assembly708-18-13230Pin
    04065-05820Ring, Snap708-2H-33140Seat
    708-2H-33150Spring708-2H-23141Seat
    708-2H-23350Guide, Retainer, Retainer708-2H-23360Pin
    708-2H-33343Retainer, Shoe, Shoe708-2H-33311Piston Subassembly
    708-2H-04690Cradle Subassembly04020-01434Pin, Dowel
    07000-B1009O-ring01252-61235Bolt, Hexagon Socket Head
    708-2H-34150Slider708-2H-03411Valve Assembly, Pc
    708-2H-03022Piston Assembly, Servo708-2G-15320Seal
    708-2H-15310Plug708-2L-35760Ball
    708-2L-35770Plug708-2L-35690Seal
    708-2L-35170Pin708-3M-15670Spool
    708-2G-15290Retainer708-2G-15140Seat
    708-2H-15330Spring708-2H-15320Spring
    708-2G-15151Seat708-2H-15340Spring
    708-2G-14340Screw07000-B3038O-ring
    708-2G-15230Ring, Back-up708-2G-15260Seal
    708-2G-15240Plug07000-B2012O-ring
    07000-B2050O-ring708-2G-15310Ring, Back-up
    708-2L-44161Cover01580-10806Nut
    708-2L-35540Nut708-2G-15330Ring, Wear
    01252-61645Bolt, Hexagon Socket Head708-2H-00450Pump Assembly
    708-2H-01450Pump Subassembly708-2H-03510Cover Assembly
    708-2G-14310Screw07000-B3038O-ring
    708-2G-15230Ring, Back-up708-2L-35540Nut
    708-2L-44130Cover07000-B2050O-ring
    708-2G-15310Ring, Back-up01252-61645Bolt, Hexagon Socket Head
    07044-12412Plug07002-62434O-ring
    20B-27-11210Bleeder07000-B2012O-ring
    04530-11222Bolt, Eye708-8E-16150Plug
    07002-61023O-ring07040-12414Plug
    708-2H-32210Shaft708-1H-22150Bearing
    708-17-05010Washer Kit708-17-12780Ring, Snap, Snap
    708-2H-04760Block Assembly,Rear708-18-13230Pin
    04065-05820Ring, Snap708-2H-33140Seat
    708-2H-33150Spring708-2H-23141Seat
    708-2H-23350Guide, Retainer708-2H-23360Pin
    708-2H-33343Retainer, Shoe708-2H-33311Piston Subassembly
    708-2H-04690Cradle Subassembly04020-01434Pin, Dowel
    07000-B1009O-ring01252-61235Bolt, Hexagon Socket Head
    708-2H-32130Coupling708-2H-12420Ring

    5. Related models:


    PC400-7PC400-7-M1PC450LC-7-M1PC450LC-7PC450-7-M1
    PC450-7PC400LC-7-M1PC400LC-7PC450-7KPC450LC-7K
    PC400LC-7LPC400-7(-50)PC220LL-8PC5500-6EPC300LC-5LC
    D61PXI-23D20A-3D475A-3PC05-5PC800LC-8R1
    PC78US-5D20A-6PC400LC-5PC850-8E0PC300HD-7L
    PC120-5SPC380UU-1D40AF-1APC228USLC-8PC120LC-6
    D39PX-22PC60-6CPC350-6PC158US-2PC220LL-7L
    D40PF-3APC600LC-8KD61EX-12APC20MR-2PC09FR-1
    DRP060-4AD670EPC118MR-8PC07-2PC400LC-6LC
    D21P-3D50A-17PC600LC-6A-KJPC340LCD-7KPC200CA-6
    D21P-7TPC10-6PC15-2APC12R-8PC160-6K
    PC600LC-8PC200-6ZPC350LC-7D40A-1PC600-6KJ-KU
    PC09-1PC450LC-6KPC60L-6PC70-6PW170ES-6K
