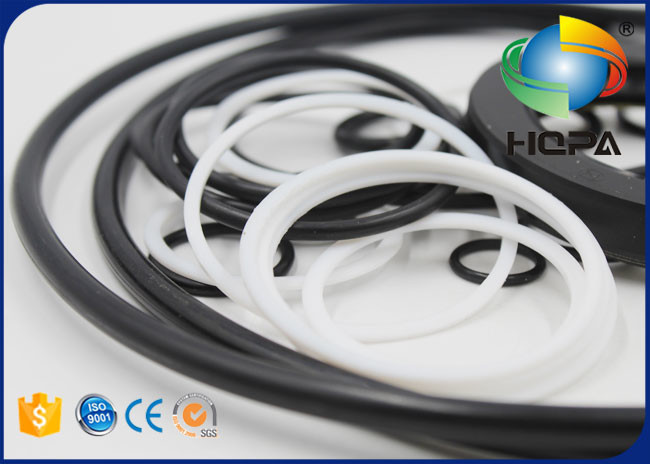

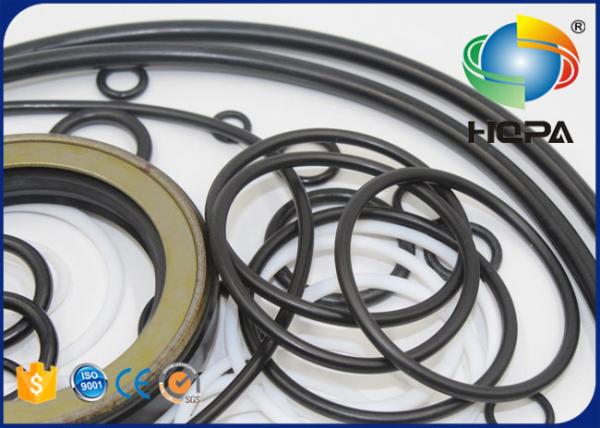

    708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit For Komatsu PC350-7

    708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
    1.Product Description:

    The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


    Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.



    2.General Product Information:


    708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
    Brand NameHQPA/OEM
    Product Name708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7
    Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
    Part No.708-2G-00022KT 708-2G-00023KT 708-2G-00022 708-2G-00023 7082G00022KT 7082G00023KT 7082G00022 7082G00023 Hydraulic Pump Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 708-2G-00022 708-2G-00023
    Group: Hydraulic Main Pump Seal Kit
    Fit for model: Komatsu PC300-7-AA PC300LC-7 PC300LC-7-BA PC300-7 PC350LC-7 PC350-7-AA PC350LC-7-BA PC350-7

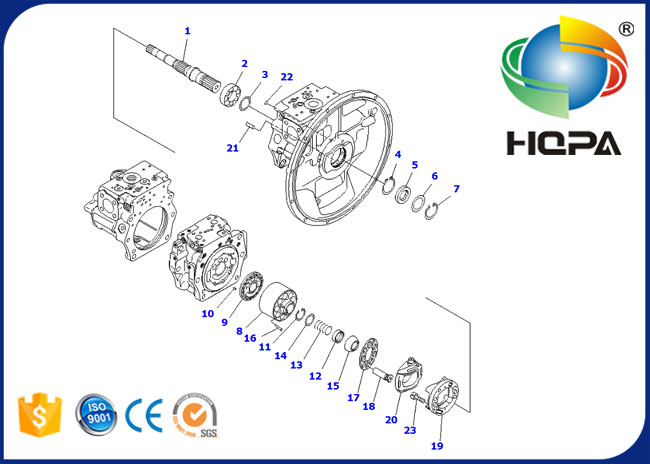

    4.Related parts


    708-2G-00022 708-2G-00023 Hydraulic Main Pump Seal Kit for Komatsu PC350-7


    Part NoParts namePart NoParts name
    708-2G-00023PUMP ASS'Y708-2G-00022PUMP ASS'Y
    708-2G-01021PUMP SUB ASS'Y708-2G-04115CASE ASS'Y, FRONT
    708-2G-04112CASE ASS'Y, FRONT708-8E-16150PLUG
    07002-61023O-RING708-2L-23920O-RING
    07040-12414PLUG07002-62434O-RING
    708-1W-28910O-RING708-2L-25650ORIFICE
    04530-01222BOLT,EYE07044-12412PLUG
    07002-32434O-RING708-2G-00024PUMP ASS'Y
    708-2G-00022PUMP ASS'Y708-2G-01021PUMP SUB ASS'Y
    708-2G-12111SHAFT708-2G-12251BEARING
    708-2G-05010WASHER KIT708-1F-12270RING, SNAP
    708-2G-15240PLUG07000-B2012O-RING
    07000-B2050O-RING708-2G-15310RING
    708-2G-14190COVER01580-10806NUT
    708-2L-35540NUT708-2G-15330RING ,WIRE
    01252-61645BOLT708-2G-14310SCREW
    07000-B3038O-RING708-2G-15230RING BACK UP
    708-2L-35540NUT708-2G-14170COVER
    07000-B2050O-RING708-2G-15310RING
    01252-61645BOLT708-2G-14120SLIDER
    708-2G-03510VALVE ASS'Y708-2G-03520PISTON ASS'Y SERVO
    708-2G-15320SEAL708-2G-15221PLUG
    708-2L-35760BALL708-2L-35770PLUG
    708-2L-35690SEAL708-2L-35170PIN
    708-2G-15211SPOOL708-2G-15290RETAINER
    708-2G-15140SEAT708-2G-15270SPRING
    708-2G-15280SPRING708-2G-15151SEAT
    708-2G-15150SEAT708-2G-15250SPRING
    708-2G-14340SCREW07000-B3038O-RING
    708-2G-15230RING BACK UP708-2G-15260SEAL
    708-2G-15240PLUG07000-B2012O-RING
    07000-B2050O-RING708-2G-15310RING BACK UP
    708-2G-14190COVER01580-10806NUT
    708-2L-35540NUT708-2G-15330RING WARE
    708-2G-12151BEARING07000-A5185O-RING
    04020--01434PIN07000-B2012O-RING
    01010-61655BOLT01643-51645WASHER
    07000-B2014O-RING708-2L-25480FILTER
    708-8E-16150PLUG07002-61023O-RING
    708-2L-23920O-RING708-2G-14210SCREW
    07000-B3038O-RING708-2G-15230RING BACK UP
    708-2L-35540NUT708-2G-14170COVER
    07000-B2050O-RING708-2G-15310RING BACK UP
    01252-61645BOLT708-2L-35530PLUG
    07002-61023O-RING708-2L-23920O-RING
    702-21-55600PILOT VALVE702-21-55901PILOT VALVE
    01252-60635BOLT20Y-62-22790BAND, RED
    702-21-55701PILOT VALVE702-21-55700PILOT VALVE
    702-16-55260BOLT20Y-62-22830BAND, WHITE
    702-21-55400VALVE ASS'Y702-21-55920PLUG
    702-21-55930PISTON702-21-55940SPRING
    702-21-55951BLOCK702-21-55950BLOCK
    07002-12034O-RING07000-11008O-RING
    722-12-18240O-RING01252-60530BOLT
    708-2G-03420PLUG SUB ASS'Y708-2G-15670PLUG
    07000-B1009PLUG07000-B1008O-RING
    07001-01008RING07000-B1007O-RING
    07001-01007RING,BACK-UP07002-61423O-RING
    708-2L-23950O-RING01643-51232WASHER
    01010-81220BOLT08193-21012CLIP
    708-2L-35311SLEEVE708-2L-24680SEAL
    708-2G-15412SPOOL708-2L-28540PISTON
    708-2L-35360SLEEVE708-2L-35260SLEEVE

    5. Related models:


    PC300-7-AAPC300LC-7PC300LC-7-BAPC300-7PC350LC-7
    PC350-7-AAPC350LC-7-BAPC350-7PC750SE-7PC210-6-A1
    PC450LC-8RPC340LC-7KPC650-6APC600LC-6A-KJD40PL-3
    PC228USLC-1PC30-6D40PF-3APC15-3PC200LC-3
    PC300-7PC30MR-1D155A-6RPC800-8R1D31PL-20
    PC300-5CPC120-6HPC120-5ZPC03-2PC240LC-3K
    PC650LC-5PW220-7E0PC20MR-2-AD60PL-8PW180-10
    PC07-2PC150HD-5KPC100L-1PC220-1PC190LC-8
    D60O-8D75A-1PC300LC-5PC88MR-8PC130-6K
    PC350LL-7E0PC1600-1PC138USLC-10PC95-1D85A-21-E
    D40AM-3PC228US-3NPC40R-8PW100-1PC200LL-7L
    PC130-5SPC600LC-8RPC30R-7D20S-6PC40-1

    Welcome to contact us, we can provide high quality and the best price!
