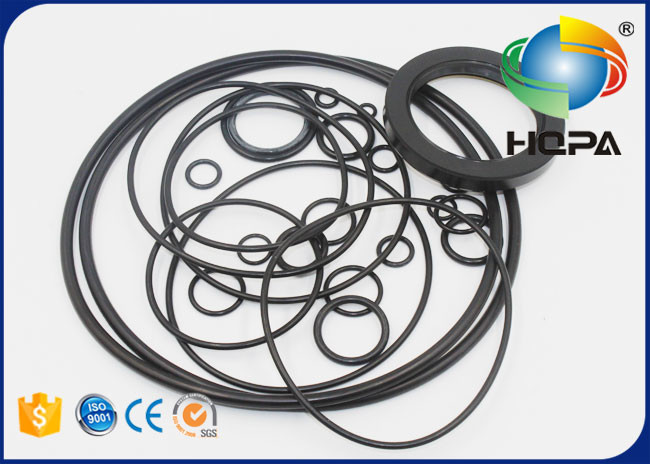

    708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit For Komatsu PC450-6

    Ask Lasest Price
    Brand Name : HQPA/OEM
    Model Number : 708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit
    Certification : ISO9001
    Price : negotiation
    Payment Terms : Western Union, L/C, T/T, MoneyGram, D/A, D/P
    Supply Ability : 500 Sets per Week
    Delivery Time : 3-5 days after payment received(public holiday excluded)
    • Product Details
    • Company Profile

    708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit For Komatsu PC450-6

    708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit for Komatsu PC450-6
    1.Product Description:

    The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.


    Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid.



    2.General Product Information:


    708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit for Komatsu PC450-6
    Brand NameHQPA/OEM
    Product Name708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit for Komatsu PC450-6
    Product styleHydraulic Main Pump Seal Kit / Main Pump Seal Kit
    Part No.708-2H-00191KT 708-2H-00191 7082H00191KT 7082H00191 Hydraulic Pump Assy
    Related parts:Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
    ApplicationKomatsu PC400LC-6Z PC400LC-6 PC450LC-6 PC450-6Z PC450-6 PC400-6Z PC400-6C PC400-6 PC400ST-6LC PC400ST-6 PC450LC-6Z PC450-6K PC450-6K-J PC450LC-6K PC450LC-6K-J PC400LC-6LK PW400MH-6 PC400LC-6LM
    MOQ1 PC
    Condition100% New
    PackageInner-Plastic Bag; Outer -Standard Carton Box.
    PaymentWestern Union, L/C, T/T, MoneyGram, D/A, D/P etc.
    Departure portsHuangpu(Guangzhou), China (Mainland)
    Delivery time3-5 days after payment received(public holiday excluded)
    Place of originChina (Mainland)
    ApplicationExcavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.

    3. Fit Model


    Part Number: 708-2H-00191KT 708-2H-00191
    Group: Hydraulic Main Pump Seal Kit
    Fit for model: Komatsu PC400LC-6Z PC400LC-6 PC450LC-6 PC450-6Z PC450-6 PC400-6Z PC400-6C PC400-6 PC400ST-6LC PC400ST-6 PC450LC-6Z PC450-6K PC450-6K-J PC450LC-6K PC450LC-6K-J PC400LC-6LK PW400MH-6 PC400LC-6LM


    4.Related parts


    708-2H-00191KT 708-2H-00191 Hydraulic Main Pump Seal Kit for Komatsu PC450-6


    Part NoParts namePart NoParts name
    708-2H-01121PUMP SUB ASS'Y04065-01610RING,SNAP
    708-2H-04110CASE ASS'Y,FRONT07044-12412PLUG
    708-1W-28910O-RING708-2L-25650ORIFICE
    708-17-05010WASHER KIT708-17-12780RING,SNAP
    708-27-22811SEAL,OIL708-2H-22160SPACER
    04065-08225RING,SNAP708-18-13230PIN
    04065-05820RING708-2H-23130SEAT
    708-2H-23151SPRING708-2H-23141SEAT
    708-2H-23350GUIDE,RETAINER708-2H-23360PIN
    708-2H-23340RETAINER,SHOE708-2H-23311PISTON SUB ASS'Y
    04020-01434PIN07000-B1009O-RING
    706-75-40340BOLT708-2H-24311PISTON
    708-2H-24220ROD04020-00514PIN
    708-2H-25870CAM01010-80825BOLT
    01643-30823WASHER708-2H-24260STOPPER
    07000-B3032O-RING07001-03032RING
    708-2H-24330PLATE708-2H-24340PACKING
    708-23-12350SCREW07044-12412PLUG
    708-1W-28910O-RING706-87-40150PLUG
    20B-27-11210BLEEDER708-2L-25650ORIFICE
    04530-01222BOLT,EYE708-2H-22220SHAFT
    708-1H-22150BEARING708-17-05010WASHER KIT
    708-17-12780RING,SNAP708-18-13230PIN
    04020-01434PIN07000-B1009O-RING
    706-75-40340BOLT708-2H-24311PISTON
    708-2H-24220ROD04020-00514PIN
    708-2H-25870CAM01010-80825BOLT
    01643-30823WASHER708-2H-24260STOPPER
    07000-B3032O-RING07001-03032RING
    708-2H-24320SCREW01643-32460WASHER
    01583-52414NUT708-2H-24270SCREW
    708-1W-28910O-RING708-2H-24140SPRING
    708-2H-24130PLUG708-2L-24620O-RING
    708-2H-22140COUPLING708-2H-12420RING
    708-2H-21860BEARING708-2H-21820GEAR
    708-2H-21850BUSHING708-2H-21810IMPELLER
    04020-00820PIN708-2H-21830GEAR,BEVEL
    01010-61440BOLT01643-31445WASHER
    708-2H-21630COVER07000-A2105O-RING
    708-2H-05010SHIM KIT01010-81235BOLT
    01643-31232WASHER708-2H-25650ORIFICE
    708-2L-25211SOLENOID ASS'Y07000-B2016O-RING
    01252-60612BOLT708-2L-25223SLEEVE
    708-2L-25232SPOOL708-2L-25291SEAT
    708-2H-25250SPRING708-2L-25261SPRING
    708-2L-25281PISTON07040-11007PLUG
    07002-61023O-RING708-2H-25370LEVER
    708-2L-25311PIN708-2L-25330BEARING
    708-2L-25321WASHER01580-00605NUT
    708-2L-25340PLUG01583-11811NUT
    07002-61823O-RING708-2L-25382PLUG
    07000-B2010O-RING04065-01610RING,SNAP

    5. Related models:


    PC400LC-6ZPC400LC-6PC450LC-6PC450-6ZPC450-6
    PC400-6ZPC400-6CPC400-6PC400ST-6LCPC400ST-6
    PC450LC-6ZPC450-6KPC450-6K-JPC450LC-6KPC450LC-6K-J
    PC400LC-6LKPW400MH-6PC400LC-6LMPC650LC-5PC750-6-AM
    D85MS-15PC4000-6D60P-6PW148-8PC20UU-3
    PC78US-8D150A-1D155AX-5PC380LC-6KPC120-6E
    D155A-6PC210LC-7KPC50MR-2PC78UU-8PC30-3
    PC350LL-7E0PC210-8KPC340LC-6KPC1250LC-7PC600LC-8
    PC750-7-M1D60E-8WD600-6PC10UU-3PC290NLC-6K
    PC290LC-10PW160-7KPC450LC-6PC5500-1PC350-6Z
    PC600-6PC210LC-5KPC228US-3PC200LC-7BPC300LC-5K
